WMT CNC INDUSTRIAL CO., LTD. >> Model Cq6133 38mm Spindle Bore Precision Bench Lathe Machine

Model Cq6133 38mm Spindle Bore Precision Bench Lathe Machine

Name: Model Cq6133 38mm Spindle Bore Precision Bench Lathe Machine
Brand: china-manufacturer-directory.com
SKU: 771502345
Availability: InStock
Rating: 4.6 (98 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 1000-2000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CQ6133
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	38mm
Max. Swing Over Bed:	330mm
Distance Between Centers:	600mm 915mm
Machine:	Lathe
Clour:	Customer Appoint
Voltage:	110V, 220V, 380V
Package:	Fumigated Poly-Wood Case
Payment:	T/T, Paypal, LC, West Union
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	High Precision
Processing Accessory:	Steel Workpiece
Tool Holder:	4-Statio Toolpost

Product Description

Main specification

Specification	Model CQ6133-600/915mm
Max. turning diameter over bed:	330mm(12-3/5")
Max. swing over cross slide:	220mm(8-11/16")
Max. length of work piece:	600mm(23-3/5") / 915mm(36")
Width of bed	160mm(6")
Spindle Taper and Bore:	MT5 / 38mm ( 1-1/2")
Max. lateral stroke over tool post	160mm(6")
Metric pitches	0.5-4 mm
Inch pitches	9-40 T.P.I
Longitudinal-feed range	0.135-1.80mm/r
Max. travel of tailstock sleeve	70mm(2-3/4")
Tailstock sleeve taper	MT3
Spindle speeds range	60-1650r/min(50hz)
Motor	1.1Kw
NW/GW (without stand)	280/300Kg 320/340Kg
Packing size (without stand)	1337672/1557672 cm
Packing size	13376137/15576137 cm

Machine details:

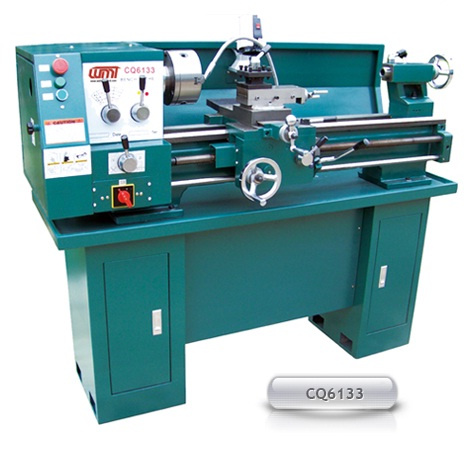

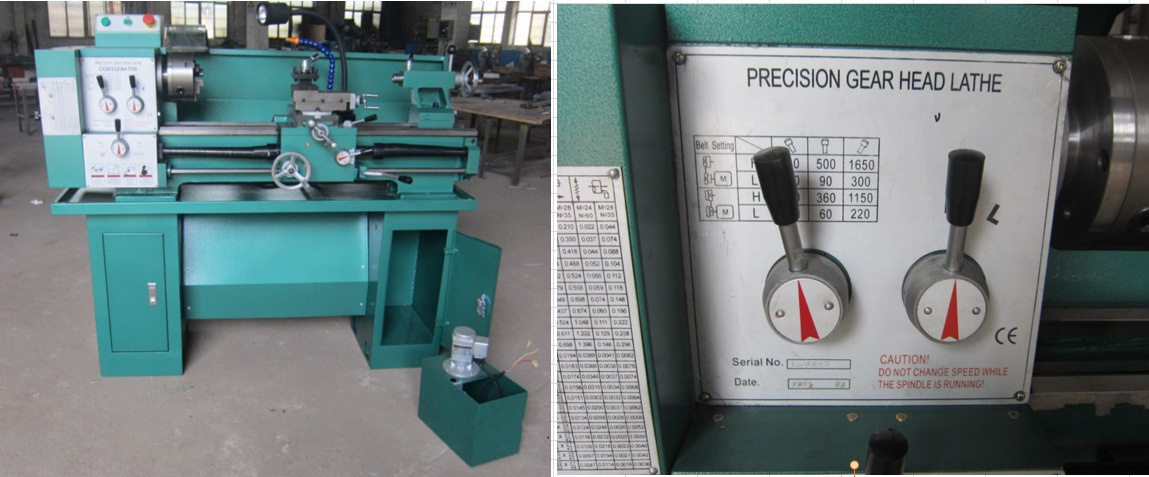

1) CQ6133 lathe: spindle bore is 38mm, max. swing over bed is 330mm

2) Details for lathe machine CQ6133 : hardend bed way

Standard accessories:

3-jaw chuck, dead center

chasing dial indicator

change gears set, splash guard

oil gun, tool box and tools

Welcome to contact with us!
Tel: 0086 566 2091958
Fax: 0086 566 2091968

We are engaged in the business line of various machine tools, ranging from common machines to CNC ones. Our main products are lathes, milling and drilling machines, grinding machines and forming machines CNC machining centers and so on. Installed and tested by professional techniques, the machines are of high quality and able to meet up to international standard. We have achieved marvelous success during the past few years, winning praise from our clients all over the world. The machines that we produce enjoy wide popularity across the world. Our facility and equipment along with a focus on education keep us on the top of this field. In order to keep pace with international standard, we spare no effort to develop new products. Our company mission is to create a serious, trusted and everlasting partnership with all our clients.

Sincerely, we are looking forward to entering into business relation with you in the near future.
