Application

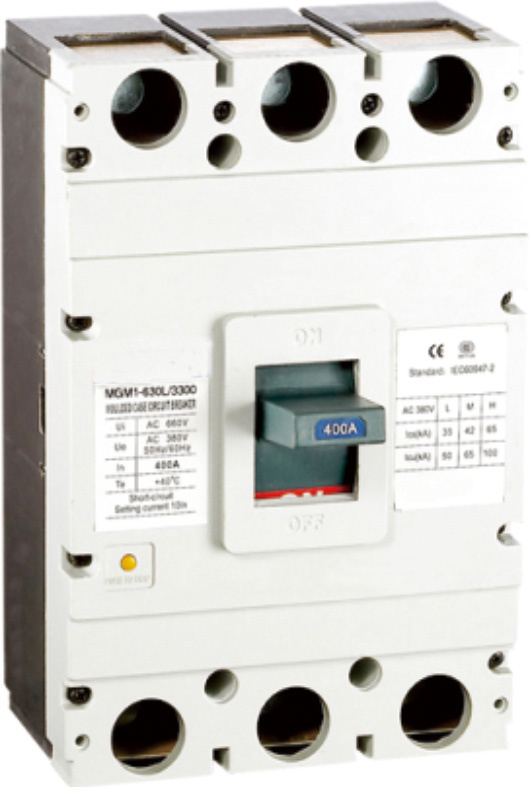

ELM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 690V and used for circuit of A.C. 50/60Hz, rated operating voltage AC 400V(or below), rated operating current up to 1250A for infrequent changing over and starting of the motors. The products conforms to IEC60947-2 standard.
| Model | ELM1-63 | ELM1-125 | ELM1-225 | ELM1-250 |
| Number of poles | 3 | 4 | 2 | 3 | 4 | 2 | 3 | 4 | 2 | 3 | 4 |
| Frame size current | 63 | 125 | 225 | 250 |
| Rated current(A) | 10,16,20,25,32,40,50,63, | 16,20,25,32,40,50,63,80,100 | 100,125,160,180,200,225 | 200,225,250 |
| Rated insulation voltage(V) | 500 | 800 | 800 | 800 |
| Rated operating voltage(V) | 380/400/415 | 380/400/415/690 | 380/400/415/690 | 380/400/415/690 |
| Arcing distance (mm) | ≤50 | ≤50 | ≤50 | ≤50 |
| Breaking capacity code | S | H | H | H | S | H | R | H | H | S | H | R | H | H | S | H | R | H |
| Frame size rated current(A) | 63 | 63 | 63 | 100 | 100 | 100 | 100 | 255 | 255 | 255 | 255 | 255 | 255 | 250 | 250 | 250 | 250 | 250 |
| Ultimate short-circuit breaking capacity Icu (ka,RMS) | AC380V/400V/415V | 15 | 35 | 35 | 50 | 25 | 50 | 65 | 50 | 50 | 25 | 50 | 65 | 50 | 50 | 25 | 50 | 65 | 50 |
| AC690V | - | - | - | 8 | 3 | 8 | 10 | 8 | 8 | 5 | 8 | 10 | 8 | 8 | 5 | 8 | 10 | 8 |
| Service short-circuit breaking capacity Ics (ka,RMS) | AC380V/400V/415V | 7.5 | 17.5 | 17.5 | 25 | 12.5 | 25 | 32.5 | 25 | 25 | 12.5 | 25 | 32.5 | 25 | 25 | 125 | 25 | 32.5 | 25 |
| AC690V | - | - | - | 4 | 1.5 | 4 | 5 | 4 | 4 | 2.5 | 4 | 5 | 4 | 4 | 2.5 | 4 | 5 | 4 |
| Fixed type |
|
|
|
|
| Rear connection |
|
|
|
|
| Plug in type |
|
|
|
|
| Shunt release |
|
|
|
|
| Under-voltage release |
|
|
|
|
| Auxiliary contact |
|
|
|
|
| Alarm contact |
|
|
|
|
