Beijing Bright Technology Development Co., Ltd. >> Panel Printer 80mm Width

Panel Printer 80mm Width

Name: Panel Printer 80mm Width
Brand: China-Manufacturer-Directory.com
SKU: 688755232
Availability: InStock
Rating: 4.7 (140 reviews)

Supplier:	Beijing Bright Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	WH-AB USB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Method:	Direct Thermal Line Printing
Paper Out Detection:	Paper End Sensors Function
Paper Loading Way:	Easy Paper Loading
Paper Width:	80±0.5mm
Print Width:	72mm
Outline Dimension(Wxhxd Mm):	105mm105mm57mm
Interface:	Serial(RS-232c ,Ttl)/Parallel Interface
Interface Type:	USB
Usage:	Receipt Printer
Style:	Black and White
Type:	Thermal Printer
Max. Paper Size:	80mm Paper Roll

Product Description

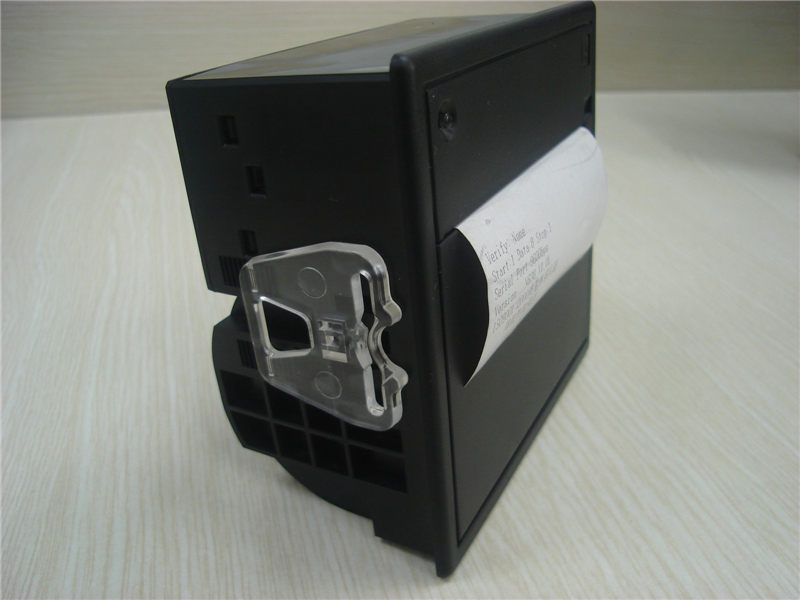

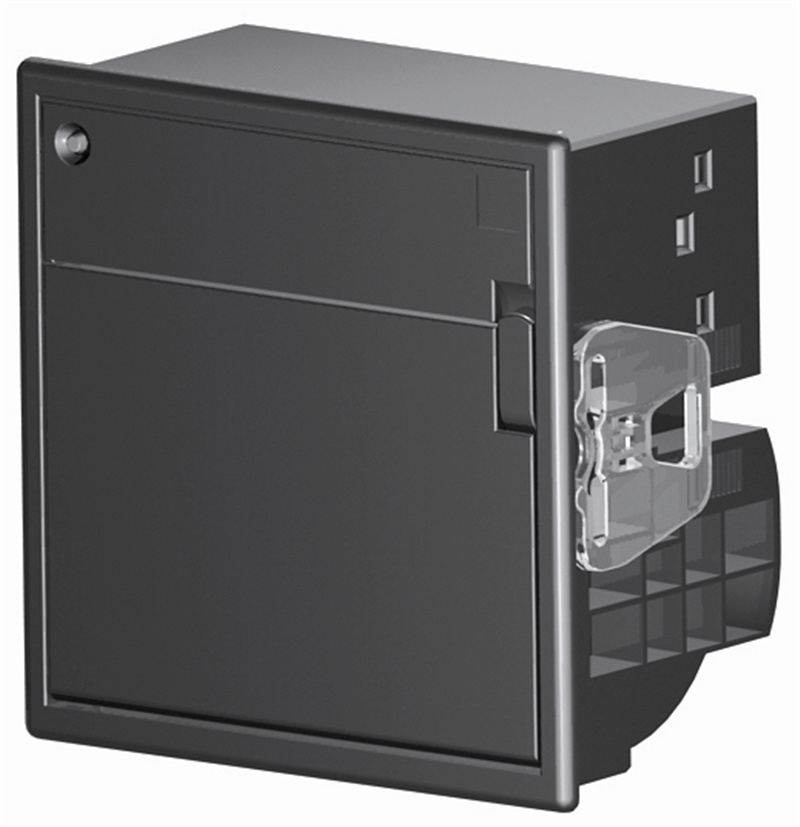

MINI TERHMAL PRINTER WH-AB

WITH 80MM PAPER WIDTH, Black/ White color. Serial RS232C/TTL/Parallel /USB interface can be choose. Input power DC5V,3A.
Please Note: The printer default configuration is Black color, RS232c interface,input power DC5V,3A, Baudrate is 9600. English and Chinese characters. If any requirements please let the seller know.

Products as below:

Item	Specification
Printing method	Direct thermal line printing
Paper out detection	Paper end sensors function
paper loading way	Easy paper loading
Paper width	80±0.5mm
Print width	72mm
resolution ration	8dot/mm, 576dot/line
life of printing head	6×106 character line
Printing speed	27mm/ 8s (when the utilization rate is 50.)
Character	6x8dots , 8x16dots,or12x24dots
Chinese character library	GB2312,16x16dots,or24x24dots

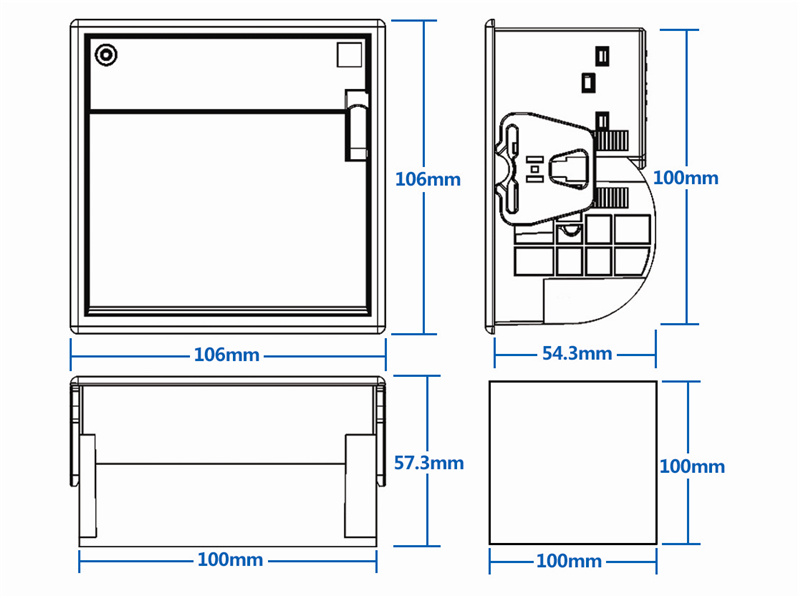

outline dimension(WxHxD mm)	105mm105mm57mm
Paper supplied	Thermal roll paper (80mm wide, 50mmø)
Interface	Serial(RS-232C ,TTL)/Parallel interface
Input Power	1: DC 5V. 2. Printer head and control panel are powered respectively. printer head: 5V-7.5V. control panel: 5V.
Operating temperature	5~50
Storage temperature	20~60
Operating humidity	10~80%
Storage humidity	10~90%
