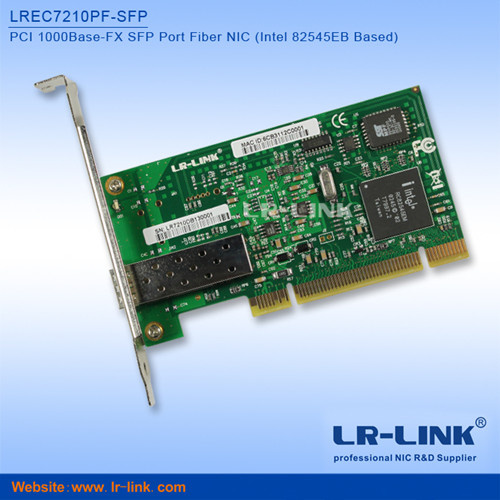

Product Specifications
| Prod Model: |
LREC7210PF-SFP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chip: |
82544 Intel Fiber Optic LAN Card |
| Product Series: |
Intel Fiber Optic LAN Card |
| Connector: |
SFP Connector Intel Fiber Optic LAN Card |
| Warranty: |
3 Years Warranty Intel Fiber Optic LAN Card |
| Intel Fiber Optic LAN Card Service: |
OEM&ODM |
| Type: |
Wired |
| Interface: |
PCI |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Desktop |
Product Description
Descriptions:
LREC7210PF is a R&D based on Intel controller, support PCI bus, managed gigabit fiber Ethernet lan card to meet the FTTD in Shenzhen Lianrui Electronics CO., LTD(LR-LINK). The LREC7020PF is also the unique 32 bit PCI gigabit fiber nic in market. It also one of the hot sales gigabit fiber nic card of LREC series in Shenzhen Lianrui Electronics CO., LTD.
LREC7210PF PCI gigabit lan card support bootrom. It will achieve real-meaning for total fiber Internet cafe, establish the strong hardware basis for Chain of Internet cafes operating companies to achieve premium and high-performance interface cafes. It has applicated successfully used in government in Guangzhou, Changsha, Tianjin and so on.
LREC7210PF use the Intel 82545EB as major controller from Intel company. It has the better stable, complaint fuctions. It is also used in Great Hall of the People, CSIC, AVIC and other large state enterprises and institutions, units and provincial authorities.
With a self-configuring PCI interface, delivers high throughput while conserving CPU resources. Enhance server performance further by teaming multiple Server Adapters with Intel's advanced server feature software for multi-Gigabit scalability and redundant failover capability. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.
Professional Quality Trustworthy
Shenzhen Lianrui Electronics CO., LTD has developed for 8 years, has been to the professional supplier for the high-quality fiber communicate products. We have accumulated a lot of rearching and manufacturing experience in fiber communication erea, especially FTTD application, it is the top in this field. To satisfy the market needs, Independent R &D kinds of fiber network cards, this is unique in the market all over the world. It was applicated successfully.
High Performance Control, High performance Assurance
82545EB Gigabit Controller, provides high performance, reliability, and low power use ina single integrated Gigabit Ethernet controller chip.
The features and benefits is as follows:
Support for most NOSs, Enables widespread deployment
INTEL gigabit SingleDriver technolog, Common driver suite for Gigabit Ethernet reduces installation Complexity
Support 32 bit PCI 1.0 and PCI 2.2 bus, complaint with 64 bit PCI bus, fits almost any type of PCI bus
Remote Management Support(WfM, RIS, SNMP/DMI), Reduces support costs with remote management based on industry-wide standards
Support IEEE 802.3ab stardard, support the normal gigabit Ethernet internet stardard
Full-height and low profile, screw-on brackets included with each adapter, for installation in high-density 1U and 2U servers
Interrupt Moderation, Delivers increased performance while significantly reducing CPU utilization
Large Send Off-load/TCP Segmentation Off-load, which enables wire speed performance with low CPU utilization
Supply switch device for fault tolerance and checking, use for checking compliant, extent normal working time.
Features:
Plug and play
32 bit PCI date transfer bus, compliant with PCI 2.2
6 layer PCB, double copper thickness, 5OZ heavy gold plate to improve the working stability
1000Mbps fiber module, LC connector, MM or SM available
Run the speed of 66MHz 32bit PCI bus to reach higher 1000BASE-LX and 1000BASE-SX fuctions
1000Mbps fast ethernet, Full duplex or half-duplex operation, reach 2000Mbps in full duplex
Support IEEE 802.3x flow control
Support IP Unicast broadcast and multicast address filtering mechanism
Support priority queue
Support IEEE 802.1Q VLAN tagging
Support IP multicast packet filterreduces host CPU use
Support high density server rack installation type of optional ultra-thin stents
Wavelength and distance:
Connector Wavelength Distance
LC/PC Dual fiber, MM 850nm 550M
Shenzhen Lianrui Electronics Co., Ltd(LR-LINK) is a scientific and technological enterprise professionally engaged in ethernet network adapter card(short for fiber nic) R&D, production, sale and service, and commit to the application and development of network card inChina. We've established tight cooperation with domestic and overseas well-known chipset manufacturers, like TI, Intel, Broadcom, Marvell, Cavium, Realtek, Icplus; Sticking to this development strategy "independent R&D, continuous innovation, be concentrated, be refined, be strong". Remember company's tenet strive for survival on the basis of quality, strive for development on the basis of innovation, working hard to contribute to our country at any time; Always regarding developing people bran as our responsibilities and duties.
