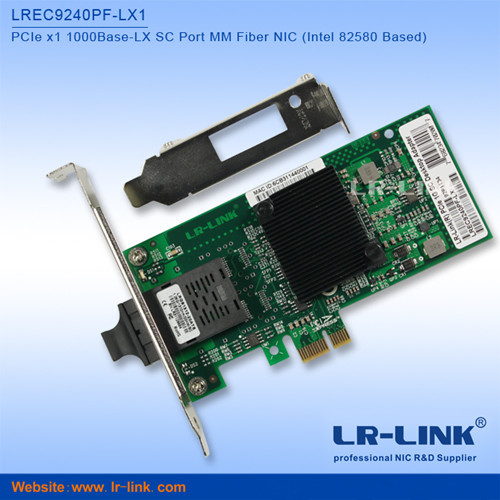

Pcie X1 1000base-Lx Sc Port Sm Fiber Nic Network Card (Intel 82580 Based)

Pcie X1 1000base-Lx Sc Port Sm Fiber Nic Network Card (Intel 82580 Based)
Supplier: Shenzhen Lianrui Electronic Co.,Ltd.
Price: Negotiable/Piece
Min Order: 10/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: LREC9240PF-LX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Wired
Interface: PCI Express
Transmission Rate: 1000Mbps
Application: Desktop

Product Description

Description:
1, Intel 82580 chipset
2, Support VDMq and FCoE
3, high quality and 3 years warranty

General Features
Intel 82580 Gigabit Ethernet Controller with
PCI Express* V2.0 (5 GT/s) Support
Low-Profile and Standard height full
Remote boot support
Load balancing on multiple CPUs
Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots
Single-port design
Support for most network operating systems (NOS)
Intel® PROSet Utility for Windows* Device Manager

I/O Virtualization Features
MSI-X support
Low Latency Interrupts
Header Splits and Replication in Receive
Multiple Queues: 8 queues per port
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
Tx TCP segmentation offload (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

Virtualization Features
VMDq
Advanced Packet Filtering
VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features
Advanced filtering capabilities
Preboot execution Environment (PXE) Support
Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) Statistic Counters
Wake-on-LAN support
ISCSI Boot
Watchdog Timer
IEEE 1588 precision time control protocol

Advanced Software Feature
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support
IEEE 802.3ad (link aggregation control protocol)
Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
PCIe Hot Plug*/Active; Peripheral component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 1588 Precision Time Control Protocol
IEEE 802.3 2005* flow control support
Tx/Rx IP, TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP), user datagram protocol
(UDP), Internet protocol (IP)
IEEE 802.1p*
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
Interrupt moderation
IPv6 offloading _ Checksum and segmentation capability extended to new standard packet type

Adapter Product Features
Plug and play specification support
Intel I/O Acceleration Technology (Intel I/OAT)
Ships with full-height bracket installed; Low-profile bracket included in package

Technical Features
Data rate supported per port: 1000 Mbps
Bus type: PCI Express* 2.1 (5 GT/s))
Bus width: 1-lane PCI Express; Operable in x1, x4, x8 and x16 slots
Interrupt levels: INTA, INTB, INTC, INTD, MSI, MSI-X
Controller-processor: Intel 82580 Gigabit Ethernet Controller
Power consumption (typical): 6.0 W
Storage temperature: -40 ° C to 70 ° C (-40 ° F to 158 ° F)
Operating temperature: 0 ° C to 55 ° C (32 ° F to 131 ° F)
Storage humidity: 90% non-condensing relative humidity at 35 ° C


Network Operating Systems (NOS) Software Support
Windows XP
Windows CE/5.0
Windows Server 2000
Windows 7 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Server 2008 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
NetWare NetWare 5.0/5.1/6.0/
DOS
Novell ODI
Linux 2.4 series kernel and 2.6. X/3. X
FreeBSD with the 9. X kernel.
OpenUNIX 8.0 (Caldera), UnixWare 7. X
Sun Solaris x86
