Product Specifications
| Prod Model: |
LREC9201CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: |
Intel 82574 LAN Card |
| Connector: |
RJ45 Network Card |
| Interface Type: |
PCI Express* Slots LAN Card |
| Network Card Function: |
Support Pxe and Wol |
| LAN Card Warranty: |
3 Years Warranty |
| Network Card Service: |
OEM&ODM |
| Type: |
Wired |
| Interface: |
PCI Express |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Desktop |

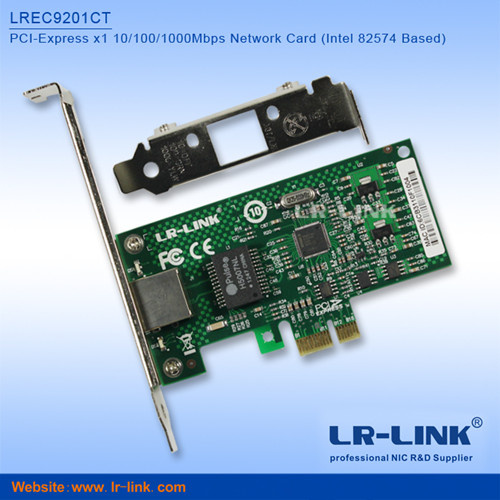

Product Description
Network card Key Features
High-performance, self-configuring 10/100/1000Mbps connection for PCI Express slots
Easy installation, maintenance, and advanced management capabilities
Low-cost, low-power, compact design
Connectivity You Can Count On
For PCs with PCI Express (PCIe*) slots, the LREC9201CT Desktop network card offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
Enhancing Desktop Performance
Fast servers and server connections are important for high network performance. However, server speed cannot overcome the drag of slow desktop performance. When a desktop PC initiates a transaction with the network server, the server quickly performs its portion of the transaction, but must wait for the desktop PC to complete its part of the transaction. The slower the PC, the longer the server must wait for transaction completion before moving to the next transaction. With PCI Express Gigabit performance to the desktop, transactions on the PC side complete significantly faster, allowing the network to service more transactions faster.
Quick and Easy Installation
The LREC9201CT Desktop lan card is supported by Intel PROSet Utility for Microsoft Device Manager and Intel PRO intelligent install. Intel PROSet simplifies adapter installation and gives you point-and-click power for configuring and managing all of your Intel Network Connections.
Features
Intel 82574L Gigabit Ethernet Controller
Interrupt moderation
PCI Express x1 slot compatible
Compatible with Fast Ethernet and Ethernet
10/100/1000 Mbps auto-negotiation
Support for most network operating systems
Advanced configuration and power interface (ACPI); Wake on LAN* (WoL); Preboot Execution Environment (PXE)
Remote Management Support
Intel® PROSet Utility for Microsoft* Device Manager
Advanced cable diagnostics
Intel backing
Optimized queues: 2 Transmit (Tx) and 2 Receive (Rx)
MSI-X support
Specifications
General
Product codes: LREC9201CT
Connectors: RJ-45
IEEE standards/network topology: 10/100/1000BASE-T
Wiring: Category-5 UTP, 4-pair
Adapter Product Features
Intel® PROSet Utility for easy configuration and management
ROHS
Plug and play specification support: Standard
Auto-negotiation, full-duplex capable
Integrated media access control (MAC) and physical layer (PHY)
Cable distance:
100m Category-5 for 1000/100 Mbps;
Category-3 for 10 Mbps
9 KB jumbo frames
Ships with full-height bracket installed, low-profile bracket added in package
Network Management
Wired for Management (WfM) baseline v2.0
DMI 2.0 support and Windows Management
Instrumentation (WMI) and SNMP-Remote Installation Services (RIS)
ACPI 1.0 power management
Wake on LAN support over PCI Express
PXE 2.0 enabled through boot read-only memory(ROM)
Network Operating Systems (NOS) Software Support
Windows 2000
Windows XP 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows 7 32-bit(64-bit)
Windows 8 32-bit(64-bit)
Windows Server 2008 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
Windows Server 2012 32-bit(64-bit)
DOS, Novell ODI
Novell Netware 5. X\6. X
Linux 2.4 series kernel and 2.6. X, 3. X
FreeBSD 7. X and later
UnixWare / OpenUnix 8
Sun Solaris x86
VMWare
