Product Specifications
| Prod Model: |
LREC9702ET |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Series: |
1g Network Card |
| Chipset: |
Intel 82576 Chipset Network Card |
| Port: |
2xrj45 Port Network Card |
| Warranty: |
3 Years Warranty |
| Functions: |
Support Vdmq Network Card |
| OEM/ODM: |
Welcome OEM/ODM Network Card |
| Type: |
Wired |
| Bandwidth: |
1000Mbps |
| Interface: |
PCI Express |
| Transmission Rate: |
1000Mbps |
| Application: |
Server |
| Motherboard Integrated: |
Separate Network Card |
| Field: |
Server |
Product Description

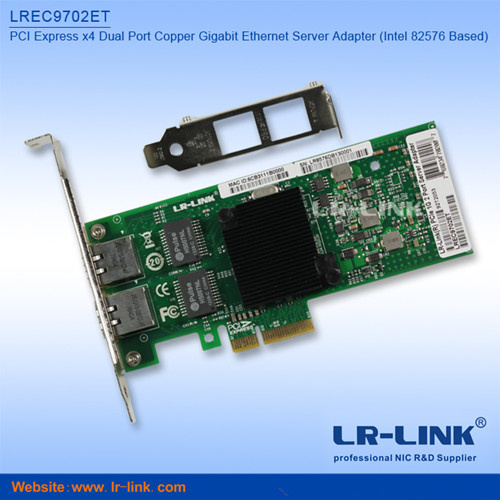

LREC9702ET PCI express X4 dual port copper gigabit ethernet network card server adapter (intel 82576 based)
High-performing, 10/100/1000 ethernet connection
Reliable and proven gigabit ethernet technology from intel corporation
Scalable PCI express* interface provides dedicated I/o bandwidth for I/o-intensive networking applications
Optimized for virtualized environments
Flexibility with iscsi boot
The lr-link lrec9702et multi-port server network card is pcie 1gbe network card. Built with the intel 82576 gigabit ethernet controller, these new network card showcase the next evolution in gbe networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.
Features;
General
Intel 82576 gigabit ethernet controller
Low-profile
Iscsi remote boot support
Load balancing on multiple cpus
Compatible with X4, X8, and X16 standard and low-profile PCI express* slots
Multi-port design
Support for most network operating systems (nos)
Intel proset utility for windows device manager
RoHS-compliant3
I/o features for multi-core processor servers
Multiple queues & receive-side scaling
Msi-X support
Low latency interrupts
Header splits and replication in receive
Multiple queues: 8 queues per port
Tx/rx IP, sctp, TCP, and UDP checksum offloading (ipv4, ipv6) capabilities
Tx TCP segmentation offload (ipv4, ipv6)
Receive and transmit side scaling for windows* environment and scalable I/o for linux* environments (ipv4, ipv6, TCP/UDP)
Ipsec offload
Linksec
Virtualization features
Virtual machine device queues2 (vmdq)
Next-generation vmdq
Ipv6 offloading
Advanced packet filtering
Vlan support with vlan tag insertion, stripping and packet filtering for up to 4096 vlan tags
PC-sig sr-iov implementation(8 virtual functions per port)
Manageability features
On-board microcontroller
Advanced filtering capabilities
Preboot execution environment (pxe) support
Simple network management protocol (snmp) and remote network monitoring (rmon) statistic counters
Wake-on-LAN support
Iscsi boot
Watchdog timer
IEEE 1588 precision time control protocol
