Product Specifications
| Prod Model: |
LREC9220PF-SFP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Chip: |
Intel 82574 LAN Card |
| Connector: |
SFP Port LAN Card |
| Speed: |
Gigabit LAN Card |
| Performance: |
Support Pxe,Wol LAN Card |
| Product Series: |
LAN Card |
| Motherboard Integrated: |
Integrated Network Card |
| Connecting Medium: |
Twisted Pair Card |
| Field: |
Server |
| Bandwidth: |
1000Mbps |
| Type: |
Wired |
| Interface: |
PCI Express |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Desktop |
| Frequency Range: |
Single Frequency |
| Type Of Network: |
Gigabit Ethernet |
Product Description
Descriptions:

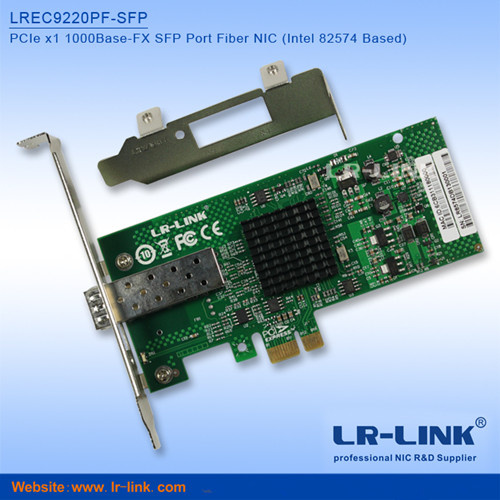

LREC9220PF-SFP is a pci-e bus 1000Mbps fiber Lan Card in network card developed by Shenzhen Lianrui Electronics CO., LTD. The lan card uses the Intel original chipset as major controller, the intel chipset has the best stability and compatibility in chipset. The quality is in high-levelWith 1x9 optical transceiver module, it can be matched with different fiber connector or optical transceiver module with different transmission distance according to the requirement of users. The network card can offer users reliable fiber-optic link on fast ethernet internet, particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (> 100m). It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver. It can provide users with reliable FTTH and FTTD solutions. Users can select the optical interface parameters (including connectors, single-mode / multi-mode fiber, working distance, etc) according to occasion.
Professional Quality Trustworthy
Shenzhen Lianrui Electronics CO., LTD has developed for 8 years, has been to the professional supplier for the high-quality fiber communicate products. We have accumulated a lot of rearching and manufacturing experience in fiber communication erea, especially FTTD application, it is the top in this field. To satisfy the market needs, Independent R &D kinds of fiber network cards, this is unique in the market all over the world. It was applicated successfully. To welcome the develop trend of "the integration of telecommunications networks, cable tv networks and the internet"and "optical access for replacing copper access", Lianrui input all our energy the LREC fiber nic brand, to supply more professional, more stable, more flexible, more products choice for users.
High Performance Control, High performance Assurance
Use the Intel as major chipset controller and the Marvell photoelectric controller to supply high perforamce for network card.
Intel, Marvell companys, is one of the leadest Semiconductor, integrated electric communication products desing, rearching manufacture all over the world.
Advantages:
Use the 6 layer PCB, double copper thickness, 5OZ heavy gold plate
Optimize designation, improved the distribution line and integral network arrangement
Use the high power control
Use the USA Marvell original photoelectric controller
Improved the fuctions and quality
Features:
Plug and play
PCI-E X1 compliant
1000M SFP module, suitable for all kinds of SFP module in market
Compliant with IEEE 802.3z 1000Base-SX / 1000Base-LX Ethernet stardard
1000Mbps fast ethernet, Full duplex or half-duplex, reach 2000Mbps in full duplex
Support IEEE 802.3x flow control
Support IP Unicast broadcast and multicast address filtering mechanism
Support priority queue
Support IEEE 802.1Q VLAN tagging
Support IP multicast packet filterreduces host CPU use
Networking Protocol:
IEEE 802.3Z 1000Base-SX/LX Ethernet standard
IEEE 802.3x flow control
IEEE 802.1q VLAN tagging
GVRP VLAN registration protocol
IEEE 802.1p priority control
PCI-E 1.0 complaint
ACPI 2.0 power manage fuctions
NOS Software Support:
Windows 2000
Windows XP 32-bit(64-bit)
Windows Server 2003 32-bit(64-bit)
Windows Vista 32-bit(64-bit)
Windows 7 32-bit(64-bit)
Windows 8 32-bit(64-bit)
Windows Server 2008 32-bit(64-bit)
Windows Server 2008 R2 32-bit(64-bit)
Windows Server 2012 32-bit(64-bit)
DOS, Novell ODI
Novell Netware 5. X\6. X
Linux 2.4 series kernel and 2.6. X \3. X
FreeBSD 7. X and Most of the FreeBSD
UnixWare / OpenUnix 8
Sun Solaris x86
VMWare
PS: The above details is just for reference, if there is any change, no prior notice.
