Feature
Precision ground and supersonic frequency
The spindle system is high in rigidity and accuracy
The noise of the machine is low
Main specification :

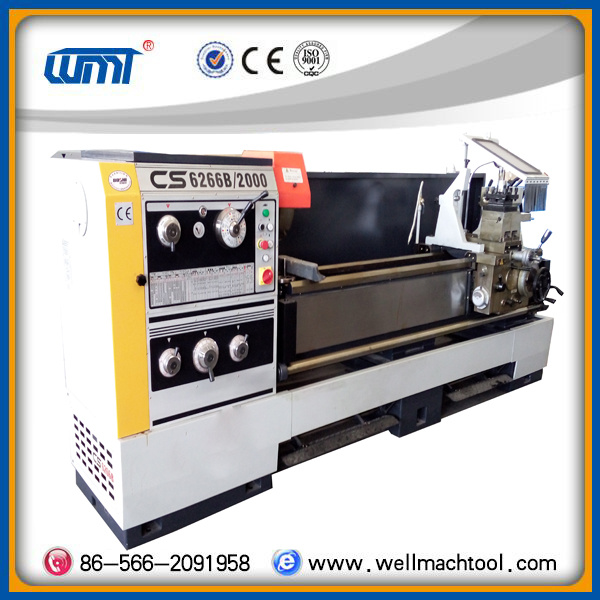

| SPECIFICATIONS | UNIT | CS6240 | CS6250/B | CS6266/B | CS6250C | CS6266C |
| Capacity | Max.Swing dia.Over bed | Mm | Φ400 | Φ500 | Φ660 | Φ500 | Φ660 |
| Max.Swing dia.In gap | Mm | Φ630 | Φ710 | Φ870 | Φ710 | Φ870 |
| Max.Swing dia.Over slides | Mm | Φ220 | Φ300 | Φ420 | Φ300 | Φ420 |
| Max.Workpiece length | Mm | 1000/1500/2000/3000 |
| Spindle | Spindle bore diameter | Mm | Φ52 | Φ82 | Φ105 |
| Type of spindle nose | No | CS6240:ISO 702/III NO.6 bayonet lock, others:ISO 702/II NO.8 com-lock type |
| Spindle speed | Rpm | 24 steps 9-1600 | 24 steps | 12 steps |
| 8-1400 | 36-1600 |
| Spindle motor power | KW | 7.5 |
| Tailstock | Diameter of quill | Mm | Φ75 | Φ90 |
| Max.Travel of quill | Mm | 150 |
| Taper of quill (Morse) | MT | 5 |
| Turret | Tool O.D.Size | Mm | 25X25 |
| Feed | Max.X travel | Mm | 145 |
| Max.Z travel | Mm | 320 |
| X feed range | Mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.063-2.52 |
| Z feed range | Mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 |
| Metric threads | Mm | 48 kinds 0.5-224 | 22 kinds 1-14 |
| Inch threads | T.P.I | 48 kinds 72-1/4 | 25 kinds 28-2 |
| Module threads | Πmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 |
| Diametricpitch threads | T.P.I.Π | 42 kinds 56-1/4 | 24 kinds 56-4 |
| | Weight | Kg | 1795/2050 | 2050/2100 | 2400/2600 | 2100/2300 | 2200/2400 |
| 2250/2450 | 2300/2500/2900 | 2800/3000 | 2500/2900 | 2600/3000 |
Standard Accessories | Optional Accessories |
| 3-jaw chuck (325mm) | Quick change tool post |
| 4-jaw chuck (400mm) | Turning tools |
| Face plate | Leadscrew cover |
| Steady rest | Chuck guard |
| Follow rest | Tool post cover |
| Splash guard | Digital readout system |
| Stand | Taper turning attachment |
| Halogen work lamp | One piece casting stand |
| Toolbox & tools |
|
| Coolant system |
|
| Foot brake |
|
| Five position carriage stop |
|
