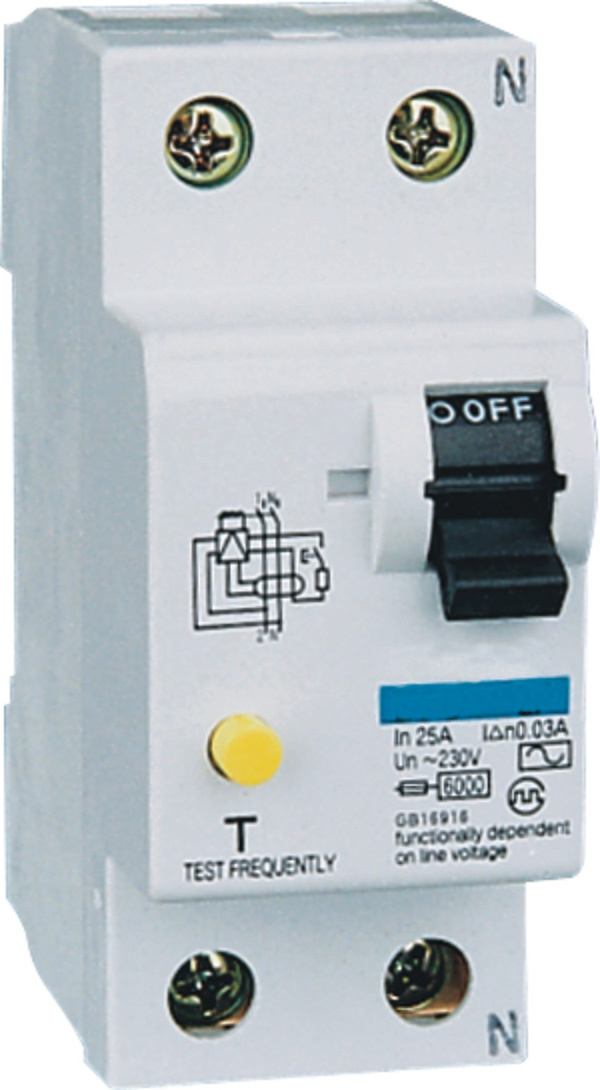

Residual Current Circuit Breaker (EBV-D)

Product Specifications

Prod Model:	EBV-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage(V):	AC 230/240,AC 400/415
Rated Current ,in:	16,20,25,32,40,50,63,80,100
Rated Residual Operating Current (in)(Ma:	10,30,100,300,500
Rated Residual Non-Operation Current (in:	≤0.5 in
Residual Operating Current Scope:	0.5in~1in
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	CCC
Poles Number:	1p+N
Function:	Ground Falt and Overcurrent

Product Description

Application

The RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault
circuit immediately on the occasion of shock hazard of earth leakage of trunk line. Thus, it  is suitable
to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for useing in varieties of plants and enterprises, buildings constructions. It can be used in circuits up to 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.

Specification

Design according to	IEC 61008 (EN 61008)
Tripping time	undelayed min.10 ms delay min.40 ms delay with selective disconnecting function
Rated voltage	230/400V; 50Hz
Rated tripping current	10,30,100,300,500mA
Sensitivity	AC and pulsating DC
Rated short	10KA with 63A gL back-up fuse
Circuit strength	10KA with 80A gL (F7-80 and -863) 6KA(rated current 63A)with 63A gL
Maximum back-up fuse for	63A gL
Short circuit protection	80A gL(F7-80 and 863)
Maximum back-up fuse for	45A gL(F7-25 and -40A)
Overload protectiton	40A gL(F7-80 A)
Resistance to climatic conditions	according to IEC 1008
Degree of protection	built-in switch IP 40
Endurance electrical comp.             mech comp.	≤4.000 operating cycles ≥20.000 operating cycles
