Product Specifications
| Prod Model: |
EF360 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage(V): |
AC 230/240,AC 400/415 |
| Rated Current ,in: |
16,20,25,32,40,50,63,80,100 |
| Rated Residual Operating Current (in)(Ma: |
10,30,100,300,500 |
| Rated Residual Non-Operation Current (in: |
≤0.5 in |
| Residual Operating Current Scope: |
0.5in~1in |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
CCC |
| Poles Number: |
1p+N |
| Function: |
Ground Falt and Overcurrent |
Product Description
Application

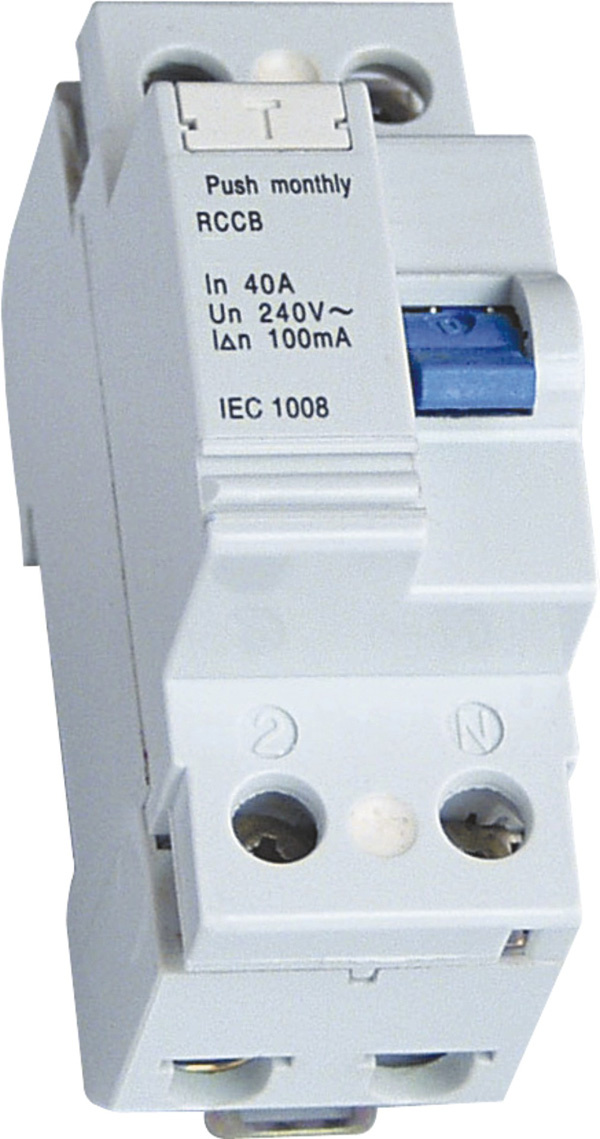

The RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault
circuit immediately on the occasion of shock hazard of earth leakage of trunk line. Thus, it is suitable
to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for useing in varieties of plants and enterprises, buildings constructions. It can be used in circuits up to 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.
Specification
| Number of Pole | 2P,4P |
| Rated Current (A) | 16,20,25,32,40,50,63,80,100 |
| Rated Residual Operating Current (In)(mA) | 10,30,100,300,500 |
| Rated Residual Non-operation Current (Ino)(mA) | ≤0.5 In |
| Rated Voltage (V) | AC 230/240 |
| AC 400/415 |
| Residual Operating Current Scope | 0.5In~1In |
| Residual Current Off-time | ≤0.3S |
| Short Circuit Capacity (Icu) | 3000A |
| Endurance | 4000 |
| Protection Degree | Ip20 |
