Product Specifications
| Prod Model: |
RYC-JLM01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Ryc-Jlm01 |
| Volume: |
102 X 80 X 35mm |
| Weight: |
217g |
| Temperature: |
-10-70 Degrees |
| Contact Current: |
220V 10A |
| Operating Frequency: |
315MHz, 433.92 MHz (Other Frequencies Optional) |
| Remote Control Distance: |
50 Meters |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
Product Description

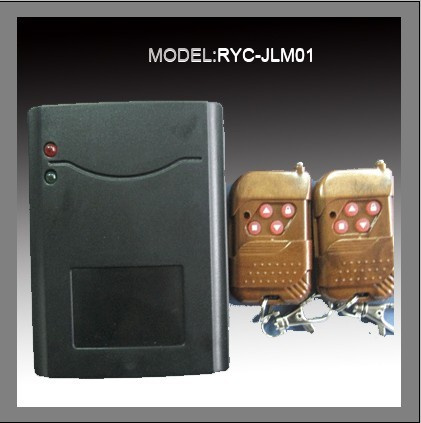

Shutter door remote control and receiver controller
Model RYC-JLM01
First, the scope
Should be primarily on a variety of electric shutter doors / windows, garage doors, remote control door locks, industrial control and wireless burglar alarm on
Second, the features
Left and shutter door motor direct docking port, plug in to manual control and remote control; Learning code with memory function; Supporting remote control is very convenient and can be self-supporting all common welding learning code remote control, remote control and DIP Learning code remote control (eliminating the hassle of coding matching).
Third, ancillary products
White packaging boxes, rolling shutters controller one, handheld push gold mahogany four-button remote control cover two.
Fourth, the operating instructions:
Control motor for the AC single-phase motors; Controller is powered on, the motor no action; Click on the hand control and motor connections up arrow (or the remote control up arrow), the motor is transferred (for closing operations); Click and motor Connect the hand control to stop the arrow (or the remote stop button), the motor is stopped (for stop operation); Click on the hand control and motor connections down arrow (or down key remote control), motor reversal (for opening operation); Press the remote lock button to lock the motor, remote control, the other function keys will be invalid, you will not be able to control operation of the motor, press the stop button will unlock; Conduct open or closed, if you want to change the direction (ie, to open the door becomes closed, closed into a switch) can be through the controller above a toggle switch to toggle.
Remote learning package Description:
Hand tap on the button to learn receiver controller (black touch switch), learning indicator lights, and then press any key remote control, learning light flashes to indicate success in learning, the remote controller remote control receiver.
V. Technical parameters
Receiver Control Box
1, volume: 102 X 80 X 35mm
2, Weight: 217g
3, temperature: -10-70 degrees
4, Working voltage: AC220
5, the operating frequency: 315MHz, 433.92 MHz (other frequencies optional)
6, the receiving mode: Super-regenerative (or heterodyne)
7, contact current: 220V 10A
Transmitter
1, volume: 58 * 38 * 13mm
2, Weight: 31g
3, temperature: -10-70 degrees
4, Working voltage: 12V
5, the operating frequency: 315MHz, 433.92 MHz (other frequencies optional)
6, remote control distance: 50 meters
