Product Specifications
| Prod Model: |
RY-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| A Half Wide Chassis: |
Metal Material |
Product Description
100 wireless system adopts newly developed digital wireless technology which has excellent sound quality and comprehensive control design.

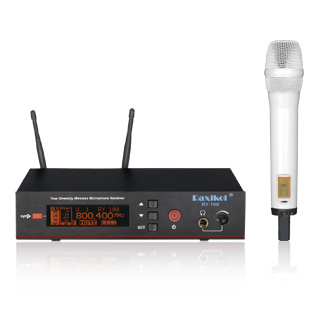

RY-100
Single Channel True Diversity Receive
> Updated digital wireless pilot channel technology
> Automatic tunable tracking technology keeps the system the best working status.
> LCD display screen, menu operation design
> EQ Digital volume control system
> IR synchronization, Auto scan free channels
> Output monitoring socket
RYH-801
Handheld Transmitter
> Case metal with hard solder design to protect the fall down and shock.
> Remove the ball of the grill in any case and the mute function will work at the same time which is for preventing the noise background.
> LCD shows Group, Channel, Battery, Volume, RF, AF, Lock status.
> 16 optional input gain control adjustments.
> Infrared data synchronization.
RYP-800
Bodypack Transmitter
> Separate antenna design
> LCD shows Group, Channel, Battery, Volume, RF, AF, Lock status.
> 16 optional input gain control adjustments.
> Infrared data synchronization.
Technical Data:
RY-100 RECEIVER
Receiving frequency ranges 500~950MHz
Switching bandwidth 42MHz
Nominal/peak deviation ± 15KHz ± 48KHz
Sensitivity -107dBm
Adjacent channel rejection ≥ 65dB
Image rejection > 75dB
S/N ratio > 107dB(A)
THD < 0.8%
Dynamic range > 107dB
Adjustment range of audio output level 48B(in steps of 3dB) +6dBgain reserve
Temperature range -15--50degree
