UHF Pll Dual Channel Wireless Microphone Systems

Product Specifications

Prod Model:	RY-203
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
19 Inch Receiver:	Metal Material

Product Description

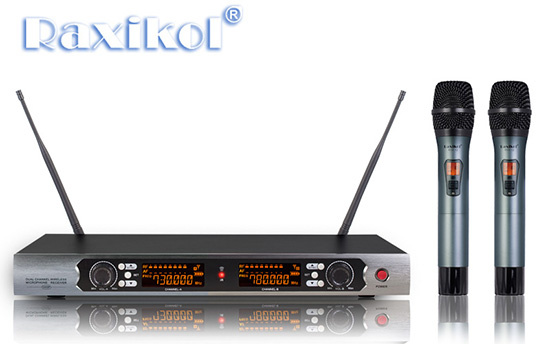

RY-203 system is specifically designed for multi-system of KTV and campus. The system adopts same-band design and the two transmitters working can be easy used interchangeably.

RY-203 UHF PLL Dual Channel Receiver
>LCD shows clear working status.
>Infrared data synchronization, with automatic search free channel function.

RYH-12A Handheld Transmitter
> Cast metal structure stands high mechanical strength.
> LCD shows Group, Channel, Battery volume and Lock status.
> Infrared data synchronization.

RYP-22 Bodypack Transmitter
> Simple mute function button design.
> LCD shows Group, Channel, Battery volume and Lock status.
> Infrared data synchronization.

Technical Data:
RY-204 RECEIVER
Receiving frequency ranges 500~950MHz
Switching bandwidth 50MHz
Nominal/peak deviation ± 15KHz ± 48KHz
Sensitivity -103dBm
Adjacent channel rejection ≥ 65dB
Image rejection > 75dB
S/N ratio > 105dB(A)
THD < 1%
Dynamic range > 105dB
