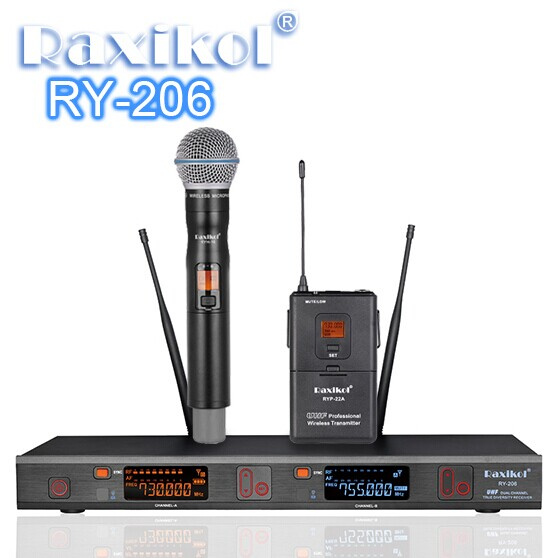

UHF True Diversity Wireless Microphone

Product Specifications

Prod Model:	RY-206
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
19 Inch Receiver:	Metal Material
Signal Transmission:	Wireless
Application:	Measurement
Directivity:	Uni-direction
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Combined Type

Product Description

206 wireless system adopts newly developed digital wireless technology. The system can search vacant channels automatically and have Infrared data synchronization function.
Dual Channels True Diversity Receiver
>Updated digital wireless pilot channel technology.
>Automatic tunable tracking technology keeps the system the best working status.
>LCD display shows clear working status.
>SQL, Digital volume control system, light touch button with simple setups.
>Infrared data synchronization, with automatic search free channel function.

RYH-16
Handheld Transmitter
>Cast metal structure stands high mechanical strength.
>LCD shows Group, Channel, Battery volume and Lock status.
>The input gain adjustment, RF power adjustment function.
>Infrared data synchronization.

Technical Data
RY-206 RECEIVER
Receiving frequency ranges 500~950MHz
Switching bandwidth 50MHz
Nominal/peak deviation +-15KHz +-48KHz
Sensitivity -107dBm
Adjacent channel rejection ≥ 65dB
Image rejection >75dB
S/N ratio >105dB(A)
THD <1%
Dynamic range >105dB
Adjustment range of audio output level 48B(in steps of 3dB)
Temperature range -15--50degree
