Product Specifications
| Prod Model: |
RY-204 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| 19 Inch Receiver: |
Metal Material |
Product Description

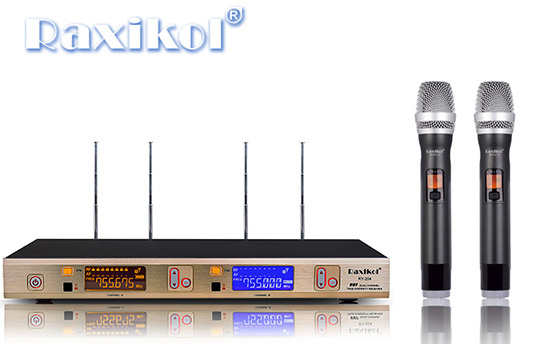

204 wireless system adopts newly developed digital wireless technology which has excellent sound quality and comprehensive control design. It is the high-grade KTV wireless microphone with adopts same-band design and the two transmitters working can be easy used interchangeably.
204 wireless system adopts newly developed digital wireless technology which has excellent sound quality and comprehensive control design. It is the high-grade KTV wireless microphone with adopts same-band design and the two transmitters working can be easy used interchangeably.
RYH-17
Handheld Transmitter
>Cast metal structure stands high mechanical strength.
>LCD shows Group, Channel, Battery volume and Lock status.
>The input gain adjustment, RF power adjustment function.
>Infrared data synchronization.
RYP-22A
Bodypack Transmitter
>Simple mute function button design.
>LCD shows Group, Channel, Battery volume and Lock status.
>The AF adjustment, RF power adjustment function.
>Infrared data synchronization.
Technical Data:
RY-204 RECEIVER
Receiving frequency ranges 500~950MHz
Switching bandwidth 50MHz
Nominal/peak deviation ± 15KHz ± 48KHz
Sensitivity -103dBm
Adjacent channel rejection ≥ 65dB
Image rejection >75dB
S/N ratio >105dB(A)
THD <1%
Dynamic range >105dB
