Single Output S Series Switching Power Supply

Name: Single Output S Series Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 695746732
Availability: InStock
Rating: 4.9 (66 reviews)

Supplier:	Yueqing Hongyin Electric Co., Ltd.
Price:	US $ 5.08/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	S-25W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	Hongyin

Product Description

Features:

High efficiency, high reliability, low cost
AC input range selected by switch
100% full load burn-in test
Protections: Short circuit / Over load
Fixed switching frequency at 25KHz
Cooling by free air convection
2 year warranty

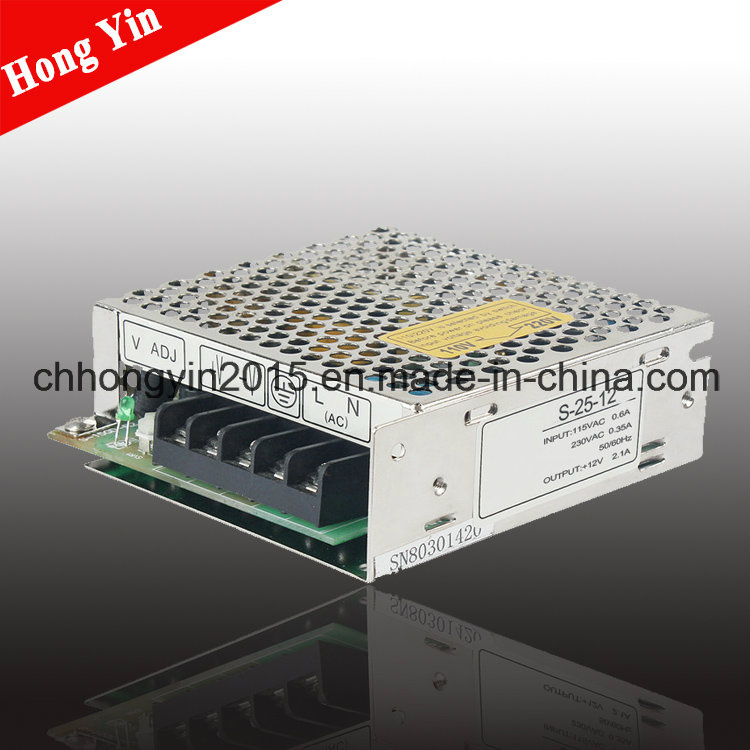

25W Single Output Switching Power Supply S-25 series

SPECIFICATIONS
OUTPUT
Model	S-25-5	S-25-12	S-25-15	S-25-24
DC Voltage	5V	12V	15V	24V
Rated Current	5A	2.1A	1.7A	1.1A
Current Range	0-5A	0-2.1A	0-1.7A	0-1.1A
Rated Power	25W	25.2W	25.5W	26.4W
Ripple & Noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
Voltage Adj. Range	-5%, +10%	±10%	±10%	±10%
Voltage Tolerance	±2%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load

INPUT
Voltage Range	85~132VAC/170~264VAC selected by switch 47~63 Hz; 240~370VDC
AC Current	0.6A/115V 0.35A/230V
Efficiency	72%/115VAC	76%/115VAC	77%/115VAC	80%/115VAC
Inrush Current	Cold start 15A/115V 30A/230V
Leakage Current	<0.75mA/240VAC

PROTECTION
Over Load	110%~160%
	Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
Over Voltage	115%~135%
	Protection type: hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT
Working Temp., Humidity	-10ºC~+60ºC; 20%~90%RH
Storage Temp., Humidity	-20ºC~+85ºC; 10%~95%RH
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, X, Y, Z each along axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD
Safety Standard	Design refer to UL1012, TUVEN60950
EMC Standard	Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5; ENV50204, EN55024

OTHERS
Dimension	999736mm(LWH)
Weight	0.39Kg
Packing	45pcs/18Kg/0.9CUFT

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Each output can within current range. But total output power can't exceed rated load. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

Yueqing Hongyin Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our compnay are the meters, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company was established in 2000, and we have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.

Yueqing Hongyin Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to America, France, Australia, Italy and 20 other countries and regions.

Yueqing Hongyin Electric Co., Ltd has always focused on research, development and innovation, In 2010-2013 years. We attained CE, RoHS, UL certification.

Our company supplies different kinds of products. High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
