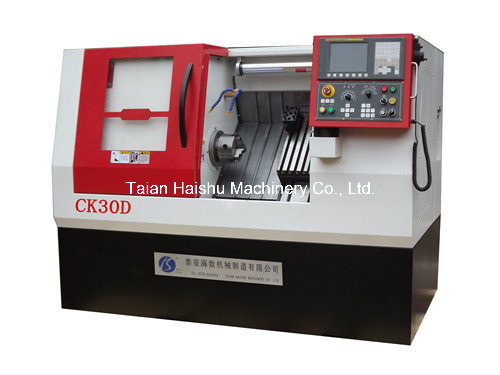

Slant Bed CNC Lathe Ck30d Machine Tool
Product Specifications
| Prod Model: |
CK30D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Turning Diameter Over Bed: |
300mm |
| Maximum Turning Diameter Over Skateboar: |
120mm |
| X-Axis Maximum Stroke: |
280mm |
| Z-Axis Maximum Stroke: |
320mm |
| Rail Width: |
325mm |
| Spindle Bore: |
41mm |
| Speed: |
5000r/M |
| Chuck: |
160mm |
| Turret Typ: |
Row Tool |
| Knife Block Center High: |
61mm |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
1haracteristics
1,45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
3The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
4Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;
5,X-axis maximum stroke(280 mm), use knife row, high work efficiency.
2.This machine is suitable for high accuracy and conformance requirements for small and medium size disk parts.
3.echnical parameters
Item |
parameters |
Maximum turning diameter over bed |
f 300 mm |
Maximum turning diameter over skateboard |
f 120 mm |
X-axis maximum stroke |
280 mm |
Z-axis maximum stroke |
320 mm |
Rail width |
325mm |
Spindle head model |
ISOA2. / MT5# |
Spindle bore |
f41mm |
Speed |
5000r/m |
Chuck |
f160 mm |
turret typ |
row tool |
Tool shank specifications |
20 mm×20 mm |
Knife block center high |
61 mm |
Main motor power |
4 kw |
X-axis maximum torque |
5 Nm |
Z-axis maximum torque |
7.5 Nm |
Foot of the bed to spindle center height |
935 mm |
Oversize |
1105×680×1194mm |
Net weight |
1000 kg |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine.
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
