Product Specifications
| Prod Model: |

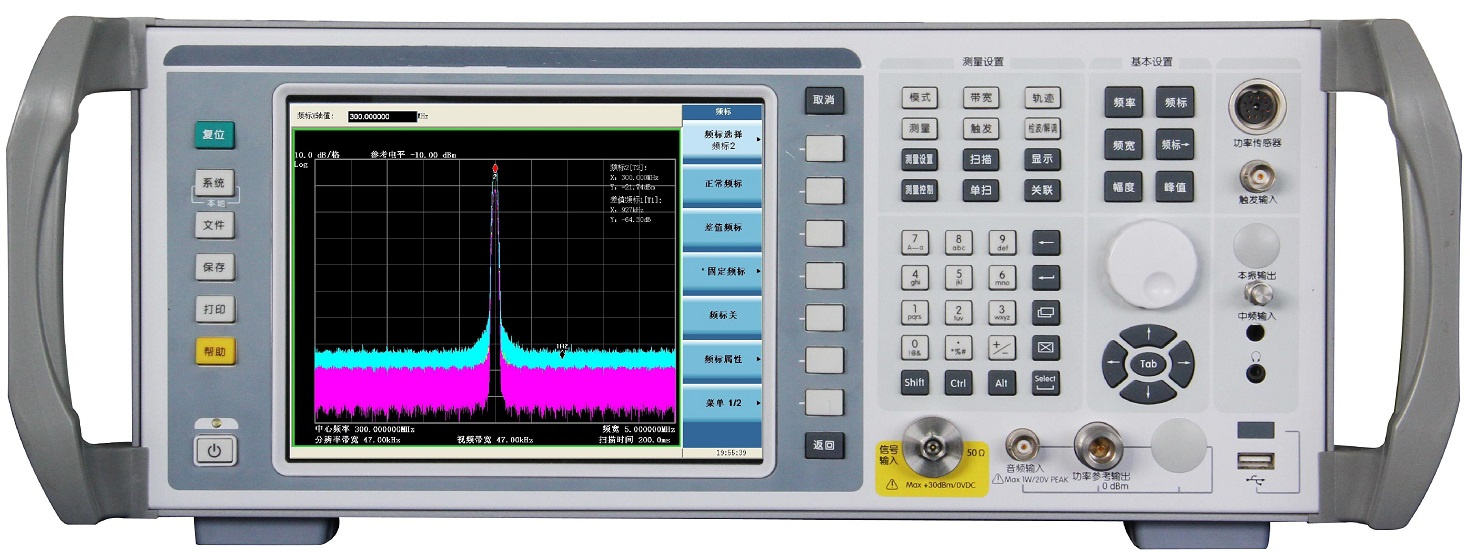

Spectrum Analyzer TW4900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product Overview:
Spectrum Analyzer TW4900 has the advantages of broad bandwidth, high solution, high dynamic range, high precision, low phase noise and fast measurement speed. TW4900 can provide the high performance services such as high sensitivity spectrum analysis, power analysis, analog demodulation test, multi-domain analysis, pulse parameter analysis, audio analysis, phase noise testing, millimeter wave frequency extension, noise figure testing and USB power meter.
TW4900 use the technology of modular frequency channel and all digital IF to form a high open testing platform. We can choose the different options to improve the testing performance of TW4900, and built test system or secondary development by a variety of digital and analog signal output interface of TW4900.
TW4900 has a wide range of applications as follows: aviation, aerospace, communication, radar and navigation.
Main Features:
Broad frequency bandwidth range
200MHz analysis bandwidth
Excellent testing performance
Full spectrum analysis
Multi-domain analysis and signal playback
Plentiful function option
Flexible analog and digital output interface
Convenient operating characteristics
Broad frequency bandwidth range
3Hz-50GHz frequency bandwidth range
9 kinds of Optional configuration of frequency bands
low frequency (<4GHz) or full-band preamplifier
Frequency extension up to 325GHz (options)
200MHz analysis bandwidth
Flexible Bandwidth to choose from 10Hz to 200MHz
10MHz standard analysis bandwidth (40MHz/200MHz, options)
64M sample memory depth (256M, options)
Seamless capture time can be up to a few hours from 1.28 seconds
Excellent testing performance
The best measurement sensitivity: -152dBm/Hz
Measurement sensitivity at 50Hz: -127dBm/Hz
Phase noise: -115dBc/Hz carrier 1GHz @ 10kHz offset
All digital IF design
