Product Specifications
| Prod Model: |
SSR20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Default as Grey, Black Is Available If Need |
| Delivery: |
3 Days |
| Certification: |
CE |
| Type: |
Temperature Controller |
| Usage: |
Drying Equipment |
| Control Type: |
Digital |
| Display Type: |
LED |
Product Description
SSR

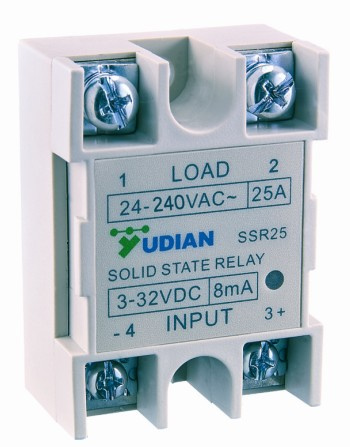

Solid State Relay(SSR)
-Load current 20A/25A/40A
- load voltage 24 to 240V AC
-Input voltage: 3 to 32V
-Input current: ≤ 8mA
-Release voltage: ≥ 1.2V
-Maximum on-state voltage drop: ≤ 1.2V
-Maximum leakage current: ≤ 2mA
-Maximum turn-on time (at 50Hz): <10mS
-Maximum turn-off time (at 50Hz): <10mS
-Minimum off-state DV/DT: 500V/μ S
-I/O insulation resistance: ≥ 100MΩ
-I/O dielectric strength: ≤ 2500V
-Ambient temperatures: -20 to 80º C
ModelSSR20SSR25SSR40SSR40H
OUTPUT
Load current20A25A40A40A
Load voltage24~240VAC24~240VAC24~415VAC
Dimensions(58*42*26)mm(58*42*26)mm(58*42*26)mm(58*42*26)mm
YUDIAN, leading Manufacturer since 1991, design and manufacturing Temperature controller, temperature instrument, temperature monitor, paperless recorder touch screen, flow accumulator. Please contact Mamie.
|
Model |
SSR20 |
SSR25 |
SSR40 |
SSR40H |
|
OUTPUT |
|
|
|
|
|
Load current |
20A |
25A |
40A |
40A |
|
Load voltage |
24~240VAC |
|
24~240VAC |
24~415VAC |
|
Dimensions |
(58*42*26)mm |
(58*42*26)mm |
(58*42*26)mm |
(58*42*26)mm |
