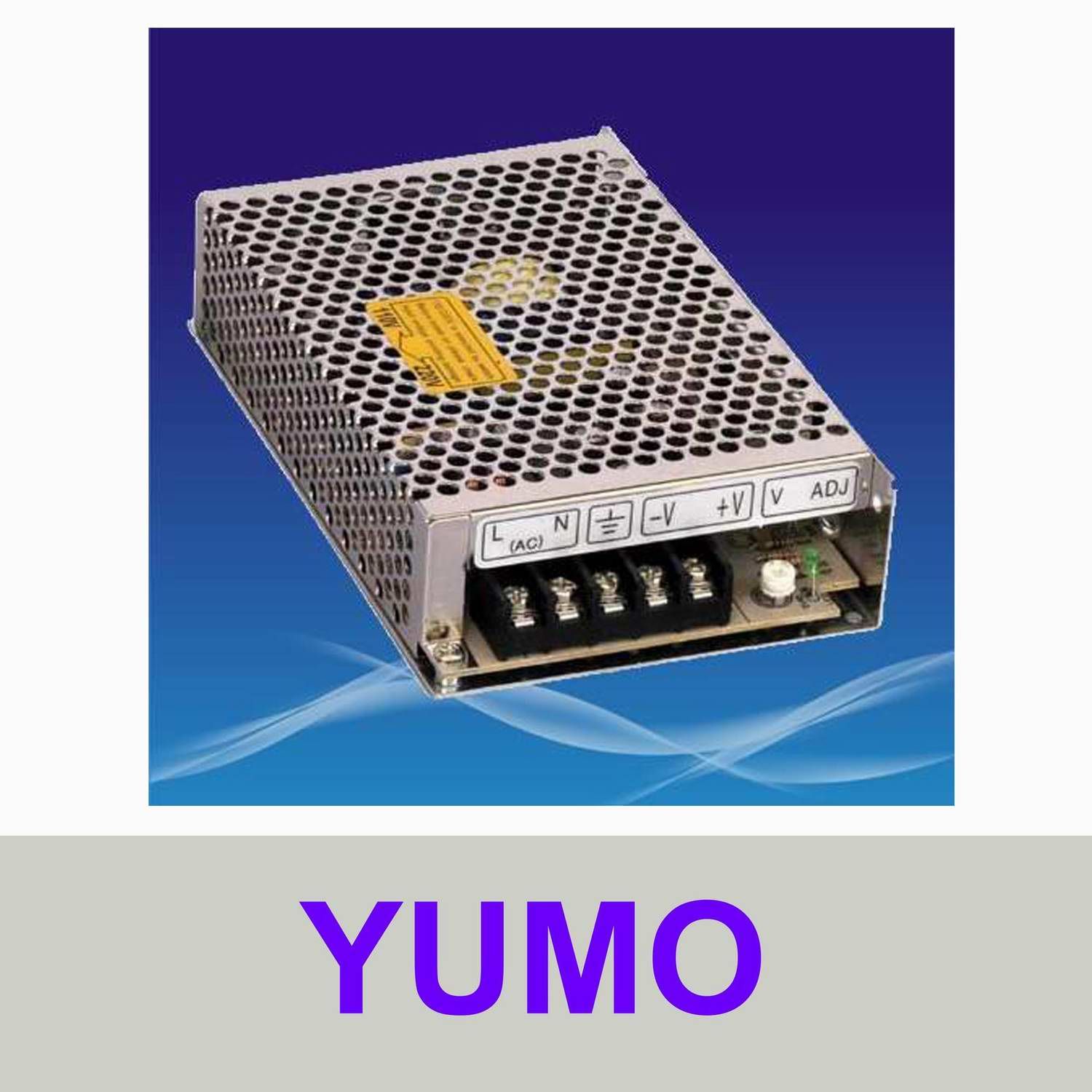

Switching Power Supply 50W Single Phase Output

Name: Switching Power Supply 50W Single Phase Output
Brand: China-Manufacturer-Directory.com
SKU: 662810645
Availability: InStock
Rating: 4.7 (63 reviews)

Supplier:	Yueqing Ying's Import & Export Co., Ltd.
Price:	Negotiable
Min Order:	10/Piece
Quantity::
Trade Terms:	BY SEA BY AIR

Product Specifications

Prod Model:	S-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W
Input Voltage:	110-220V
Voltage Regulating Mode:	Width Modulation Type
Starting Mode:	Self-excited Switching Power Supply
Connection Mode:	Series Switching Power Supply
Power Supplying System:	Level 1 Power Distribution Equipment

Product Description

Switching power supply, switch power supply, DC power supply Protection: Over load, over voltage, short circuit

Model Specification	S-50-5	S-50-12	S-50-15	S-50-24
DC output voltage	5V	12V	15V	24V
Output voltage error (Note2)	±2%	±1%	±1%	±1%
Rated output current	10A	4.2A	3.4A	2.1A
Output current rage	0-10A	0-4.2A	0-3.4A	0-2.1A
Wave and noise(Note3)	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	50W	50.4W	50.4W	50.4W
Efficiency	71%	78%	78%	82%
Adjustable range for DC voltage	±10,-5%	±10%	±10%	±10%
AC input voltage range	85∼132VAC/170∼264VACselected by switch
Input current	1.3A/115V 0.65A/230V
AC impulse current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%∼150%TypeTOLDBACK Reset: auto recovery
Over-voltage protection
High-temperature protection
Temperature coefficient	±0.03%(0∼50)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10∼500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms
Working temperature and humidity	-10∼+60,20%∼90%RH
Store temperature and humidity	-20∼+85,10%∼95RH
Overall dimension	1599738mm
Weight	0.5Kgs
Safety standards	Meet UL1012
EMC standards
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note:5) 3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5.Load stability test: The load is from 0% to 100%,others 60%. 6.C2311must be knocked down.
