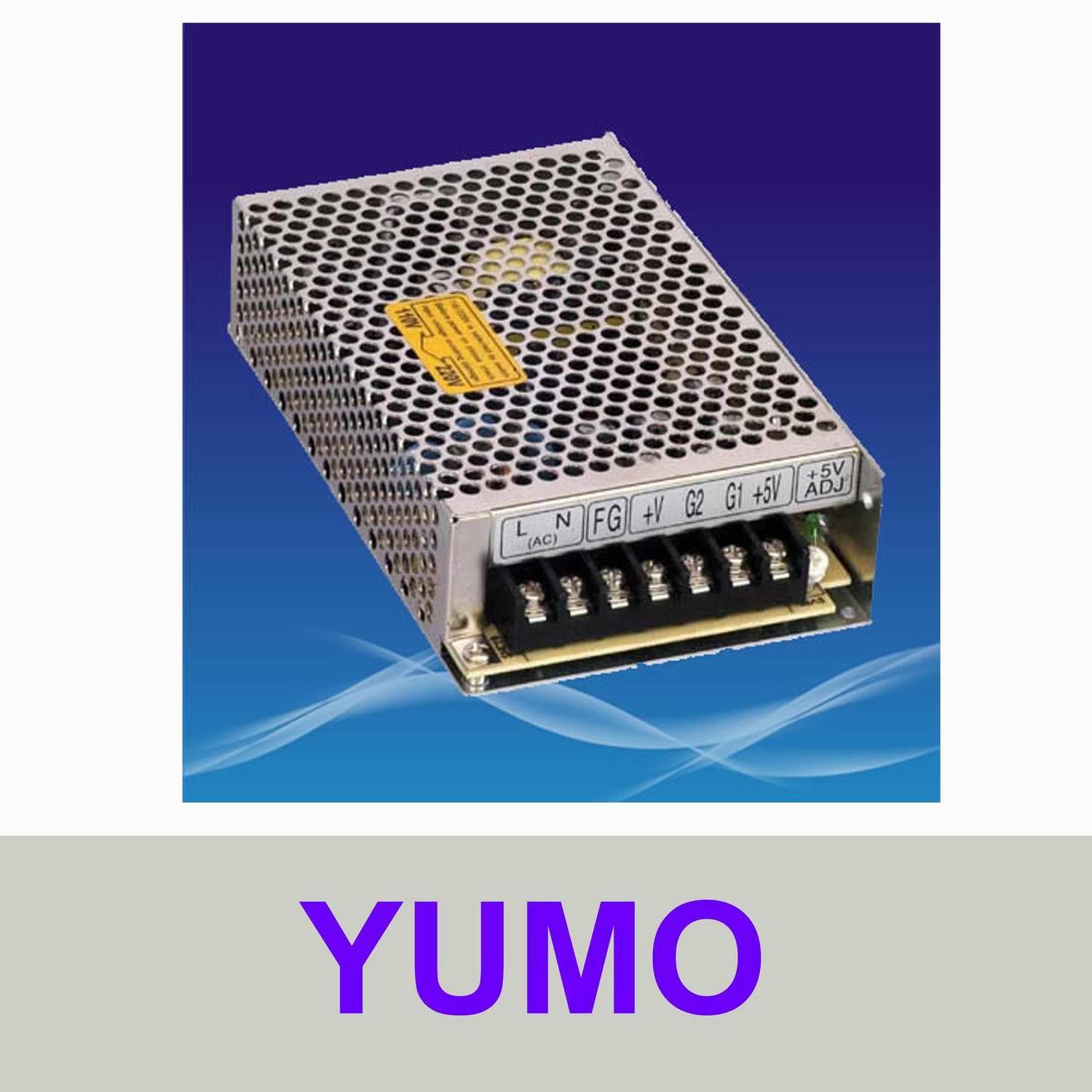

Switching Power Supply Double Output (D-60A)

Name: Switching Power Supply Double Output (D-60A)
Brand: china-manufacturer-directory.com
SKU: 662811725
Availability: InStock
Rating: 4.7 (51 reviews)

Supplier:	Yueqing Ying's Import & Export Co., Ltd.
Price:	Negotiable
Min Order:	10/Piece
Quantity::
Trade Terms:	BY SEA BY AIR

Product Specifications

Prod Model:	D-60A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Dual
Output Power:	101 - 200W
Input Voltage:	110-220V
Voltage Regulating Mode:	Width Modulation Type
Starting Mode:	Self-excited Switching Power Supply
Connection Mode:	Series Switching Power Supply
Power Supplying System:	Level 1 Power Distribution Equipment

Product Description

Switching power supply, switch power supply, DC power supply Protection: Over load, over voltage, short circuit

Model		D-60A		D-60B
		CH1	CH2	CH1	CH2
Output	Direct-current output voltage	5V	12V	5V	24V
	Output voltage tolerance	±2%	±6%	±2%	±5%
	Specified output electric current	4A	3A	3A	1.8A
	Output current scope	0.3-6A	0.2-4A	0.3-6A	0.2-2.2A
	Output	56W		58W
	Ripple and noise	75mVp-p	150mVp-p	75mVp-p	150mVp-p
	DC voltage adjustable range	CH1: -5%,+10%		CH1: -5%,+10%
	The start, the rise, maintain the time	300ms,50ms, 80ms/230VAC800ms,50ms,10ms/115VAC full load
Input	Input voltage scope	85~264 VAC/47~63 Hz; 120~370VDC
	Exchange input current	2A/115 V1A/230 V
	Efficiency	73%		76%
	Surge current	Cold starting current 30A/115VAC60A/230VAC
	Leaks the electric current	<3.5mA/240VAC
Protection feature	Over-load protection	105%~150%
		Guard mode: The cut-off output, turns back the type self-recovery
	Overvoltage protection	115%~135%
		Guard mode: Makeing a belch pattern, self-recovery
Environment	Operating temperature, humidity	-10~+60; 20%~90%RH
	Preserved temperature, humidity	-20~+85; 10%~95%RH
	Anti-knocking property	10~500Hz,2G 10min. /1 cycle, when long 60 minutes, various axes
Safe	Resistance to pressure	Input output: 3KVAC input and place: 1.5KVAC output and place: 0.5KVAC
	Dielectric resistance	Input output, input and place, output and place: 100M Ohms/500VDC
Meet standards	Standard of security	Conforms to UL1012, UL60950, EN60950
	EMC standard	Conforms to EN55022(CLSPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024
Other	Weight	0.54Kg
	Packing	24pcs/13.8Kg/0.75CUFT
Note	1. All parameters when have not indicated specially, is in the 230VAC analog input, the rated load and 25 under the condition surveys the obtained value. 2. The ripple and the noise voltage are when the 20MHz band width oscilloscope brings 12 inch twisted pair line terminals to add 0.1μ and 47μ the electric capacity obtains. 3. The tolerance is sum total of the voltage hypothesis error, the voltage relative regulation and the electric current relative regulation. 4. This power source considered that does is a component installs on the final equipment, this equipment must confirm its EMC target.
