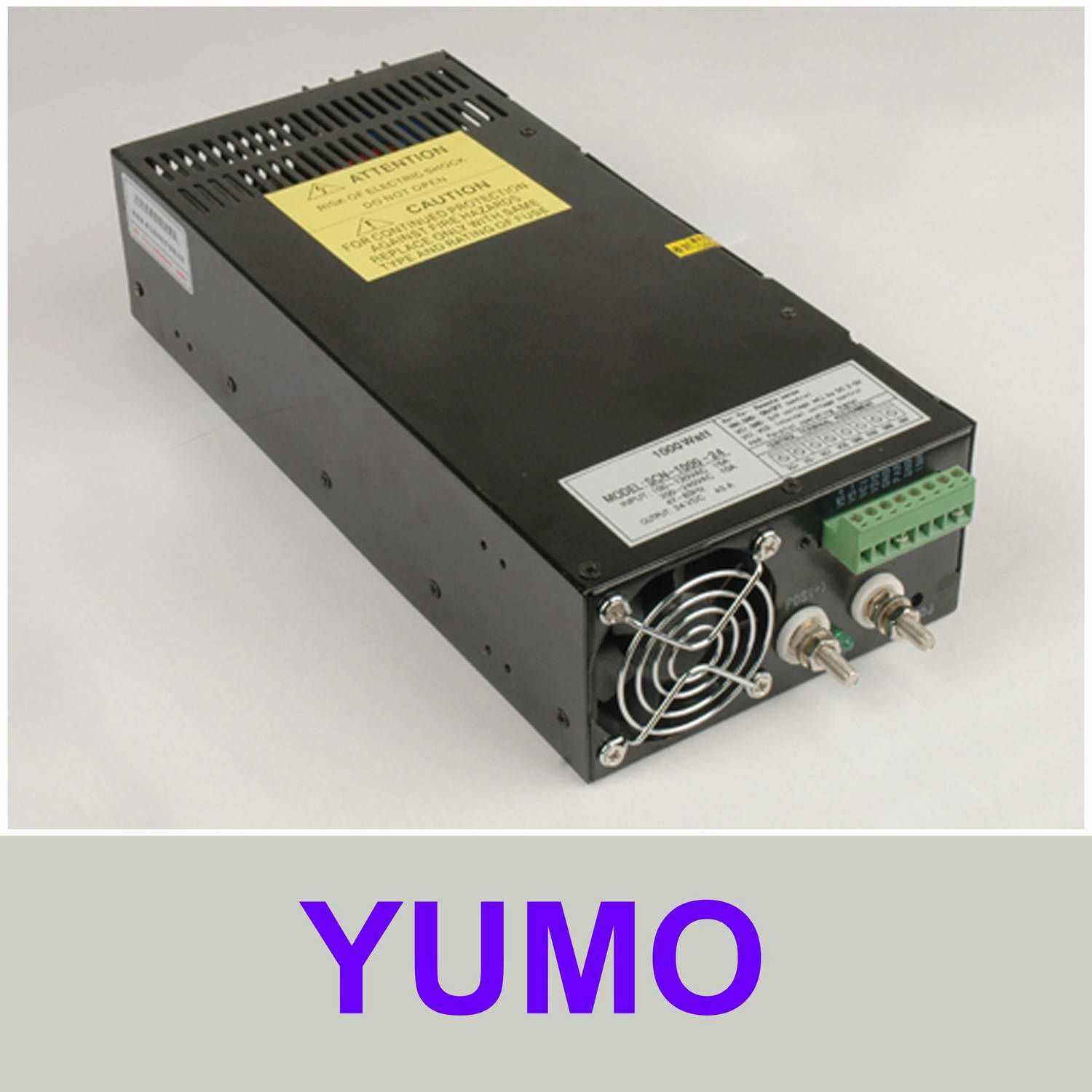

Switching Power Supply 800w Single Phase Output

Name: Switching Power Supply 800w Single Phase Output
Brand: china-manufacturer-directory.com
SKU: 662811135
Availability: InStock
Rating: 4.4 (42 reviews)

Supplier:	Yueqing Ying's Import & Export Co., Ltd.
Price:	Negotiable
Min Order:	10/Piece
Quantity::
Trade Terms:	BY SEA BY AIR

Product Specifications

Prod Model:	S-800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	>500W
Input Voltage:	110-220V
Voltage Regulating Mode:	Width Modulation Type
Starting Mode:	Self-excited Switching Power Supply
Connection Mode:	Series Switching Power Supply
Power Supplying System:	Level 1 Power Distribution Equipment

Product Description

Features

·Universal Input Range :AC220V

·Protection: Overload /Over voltage/Over temperature/Short circuit

·Efficiency75%(Min)

·LED power on indication

·Built-in EMI filter

·100% full load burn-in test 2H

·MTBF>50,000H

·Safety standards:GB4943,UL60950,EN60950

·EMC standards:GB9254,EN55022 A

·1 year warranty

·Cooling:free air convention

Parameter:

Model Specification	SP-800-12	SP-800-13.5	SP-800-15	SP-800-24	SP-800-27	SP-800-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage error	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	40A	36A	32A	20A	18A	10A
Output current rage	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Wave and noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	480W	486W	480W	480W	486W	480W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
Adjustable range for DC voltage	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
AC input voltage range	88132VAC/176264VAC BY SWITCH 4763Hz;124370VDC
AC Input current	7A/115V 3.5A/230V
Power Factor	0.95/100240VAC
AC impulse current	18A/115V 36A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%135% TypePULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	13.816.2V	15.518.2V	1821V	27.632.4V	3136.5V	57.667.2V
Fan control,O.T.P.	RTH1 OR RTH2>=50 FAN ON,<=45 FAN OFF,>=70 Cut off output
Temperature coefficient	±0.03%(050)
Setup rise hold up time	1.5s,50ms,20ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure500VDC/100M Ohms
Working temperature and humidity	-10+50,20%90%RH
Store temperature and humidity	-20+85,10%95%%RH
Overall dimension	1852093mm
Weight	1.8Kgs
Safety standards	UL1950,TUV EN60950
EMC standards	IEC1000-42,3,4,5,6,8,11 IEC100-3-2
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note:5) 3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5.Load stability test: The load is from 0% to 100%,others 60%. 6.C2311must be knocked down.
