Product Specifications
| Prod Model: |
TC-666 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memorychannels: |
16 Channels |
| Channel Spacing: |
12.5/25kHz |
| Frequency Stability: |
±2.5ppm |
| Weight(Approx.): |
198g(Except Battery and Antenna ) |
| Frequency Combination: |
Phase Lock Loop Frequency Synthesize |
| Operating Voltage: |
DC7.4V |
| Battery Capacity: |
1500mAh(Li-ion Battery) |
| Ctcss/DSC: |
Ctcss:50 Dcs:105 |
| Operating Temperature: |
-10deg to +60deg |
| Dimension(Approx.): |
115*59*34mm (Except Antenna) |
| Wavelength And Frequency: |
Middle-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
Without Screen |
Product Description

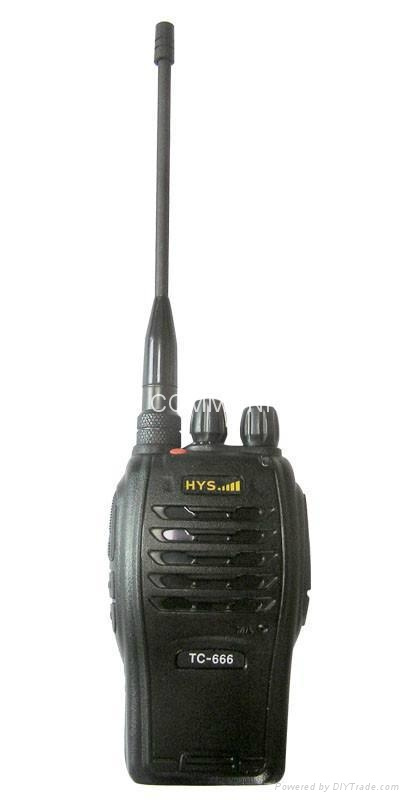

TC-666 Good Performance VHF or UHF Handheld Ham Two Way Radio
Product Description:
Main Functions:
1. Full VHF/UHF
2. Whisper
3. Voice guide
4. Voice encryption
5. DTMF
6. ANI code
7. H/L power
8. PTT ID
9. Emergency alarm
10. Monitor
11. Battery save
12. VOX
13. TOT
14. Busy channel lockout
15. Wired cloning
16. PC programming
Specifications:
General Specification:
Frequency Range: VHF: 136-174MHZ
UHF: 400-470MHZ, 440-510MHZ 470-512 MHZ
Frequency combination: Phase lock loop frequency synthesize
MemoryChannels: 16 Channels
Operating Voltage: DC7.4V
Channel Spacing: 12.5/25KHz
Battery Capacity: 1500MAH(Li-ion battery)
Frequency Stability: ± 2.5PPM
CTCSS/DSC: CTCSS: 50 DCS: 105
Antenna Impedance: 50Ω
Operating Temperature: -10º C to +60º C
Weight(approx. ): 198g(Except battery and antenna )
Dimension(approx.): 115× 59× 34mm (Except Antenna)
Transmitter(Testing under TIA/EIA-603 standard):
Output Power: ≤ 7 W (H) /2W (L)
Modulation Mode: 16K¢ F3E
MAX. Frequency Deviation: ≤ ± 5.0KHz
Frequency Stability: ± 5ppm
Spurious Radiation: ≤ 60dB
Residual Modulation: ≤ -35dB
Modulation Distortion: ≤ 5%(300-3000Hz)
FM Noise: ≤ -40dB
Audio Distortion: ≤ 5%
CTCSS Frequency Deviation: 0.75KHz± 50Hz
Receiver(Testing under TIA/EIA-603 standard):
Sensitivity: ≤ 0.20uV
Operating Bandwidth: ≥ ± 7KHz
Squelch Sensitivity: ≤ 0.15uV
Frequency Stability; ± 5ppm
Adjacent channel selectivity: ≥ 60dB
Spurious Rejection: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
FM Noise: ≤ -45dB
Audio Power: ≥ 600mW
Audio Distortion: <5%
| TC-666 |
| General Specification |
| Frequency Range | VHF:136-174MHZ
UHF: 400-470MHZ,440-510MHZ
470-512 MHZ | Frequency combination | Phase lock loop frequency synthesize |
| MemoryChannels | 16 Channels | Operating Voltage | DC7.4V |
| Channel Spacing | 12.5/25KHz | Battery Capacity | 1500MAH(Li-ion battery) |
| Frequency Stability | ±2.5PPM | CTCSS/DSC | CTCSS:50 DCS:105 |
| Antenna Impedance | 50Ω | Operating Temperature | -10deg to +60deg |
| Weight(approx.) | 198g(Except battery and antenna ) | Dimension(approx.) | 115×59×34mm (Except Antenna) |
| Transmitter(Testing under TIA/EIA-603 standard) |
| Output Power | ≤ 7 W (H) /2W (L) | Modulation Mode | 16K F3E |
| MAX. Frequency Deviation | ≤±5.0KHz | Frequency Stability | ±5ppm |
| Spurious Radiation | ≤60dB | Residual Modulation | ≤-35dB |
| Modulation Distortion | ≤5%(300-3000Hz) | FM Noise | ≤-40dB |
| Audio Distortion | ≤5% | CTCSS Frequency Deviation | 0.75KHz±50Hz |
| Receiver(Testing under TIA/EIA-603 standard) |
| Sensitivity | ≤0.20uV | Operating Bandwidth | ≥±7KHz |
| Squelch Sensitivity | ≤0.15uV | Frequency Stability | ±5ppm |
| Adjacent channel selectivity | ≥60dB | Spurious Rejection | ≥60dB |
| Intermodulation Rejection | ≥60dB | FM Noise | ≤-45dB |
| Audio Power | ≥600mW | Audio Distortion | <5% |
| Meet U.S.A Military Standards (MIL-STD-810C/D/E) |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
