Tc-666 High Power Output 7W VHF or UHF Ham Handheld Two Way Radio

Name: Tc-666 High Power Output 7W VHF or UHF Ham Handheld Two Way Radio
Brand: china-manufacturer-directory.com
SKU: 662425625
Availability: InStock
Rating: 5 (53 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	TC-666 two way radio
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF:136-174MHz UHF: 400-470 or 440-510 or 470-512m
Memorychannels:	16
Weight(Approx.):	198g(Except Battery and Antenna )
Dimension(Approx.):	115mm59mm34mm
Operating Temperature:	-10 to +60
Ctcss/DSC:	50 Group Ctcss and 105 Groups Dcs
Battery Capacity:	1500mAh(Li-ion Battery)
Dtmf:	Yes
PC Programming:	Yes
Vox:	Yes
Style:	Handheld
Talk Range:	8km Max
Usage:	Army
Battery Type:	Lithium Battery
Type:	Handheld
Display:	Without Display
Working Frequency Range:	VHF or UHF

Product Description

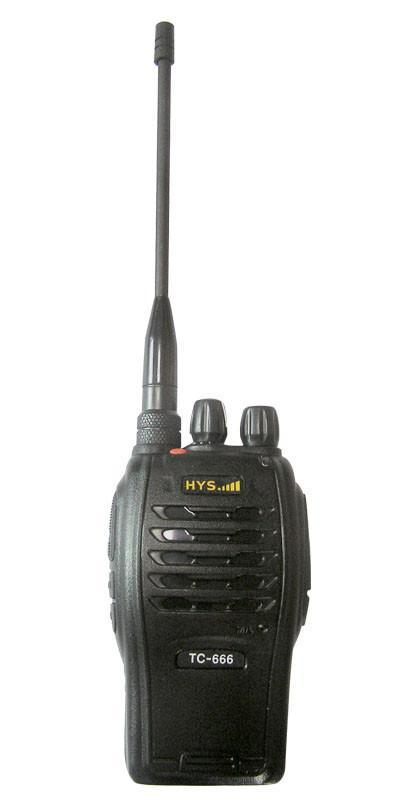

Handheld 2 way radio TC-666 Introduction:

Handheld 2 way radio radio TC-666 is one kind of nice designed,good performance with high power hand radio which has 16 channels,7watts output power,Voice encryption ,powerfual function,it is the best choice for villas,houses,shops,stores,hospital,schools,libraries.

Handheld 2 way radio TC-666 Feature:

1.Frequency Range:VHF:136-174MHz
UHF:400-470 or 440-510 or 470-512 MHz
2.Output Power: 7W
3.Storage Channel :16
4.Channel Spacing:12.5/25KHz
5.VOX Function
6.DTMF sinalling Function.
7.50 group CTCSS and 105 groups DCS
8.Voice guide
9.Business channel lockout
10.Wired cloning
11.Voice encryption
12.Priority Channel Scan
13.Emergency Alarm
14.PC Programming
15.Wide/Narrow Bandwidth Shift
16.Squelch Level adjustable
17.High/Low power
18.TOT

TC-666
General Specification
Frequency Range	VHF:136-174MHZ UHF: 400-470MHZ	Frequency combination	Phase lock loop frequency synthesize
MemoryChannels	16 Channels	Operating Voltage	DC7.4V
Channel Spacing	12.5/25KHz	Battery Capacity	1500MAH(Li-ion battery)
Frequency Stability	±2.5PPM	CTCSS/DSC	CTCSS:50 DCS:105
Antenna Impedance	50Ω	Operating Temperature	-10 to +60
Weight(approx.)	198g(Except battery and antenna )	Dimension(approx.)	115×59×34mm (Except Antenna)
Transmitter(Testing under TIA/EIA-603 standard)
Output Power	≤ 7 W (H) /2W (L)	Modulation Mode	16K¢F3E
MAX. Frequency Deviation	≤±5.0KHz	Frequency Stability	±5ppm
Spurious Radiation	≤60dB	Residual Modulation	≤-35dB
Modulation Distortion	≤5%(300-3000Hz)	FM Noise	≤-40dB
Audio Distortion	≤5%	CTCSS Frequency Deviation	0.75KHz±50Hz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity	≤0.20uV	Operating Bandwidth	≥±7KHz
Squelch Sensitivity	≤0.15uV	Frequency Stability	±5ppm
Adjacent channel selectivity	≥60dB	Spurious Rejection	≥60dB
Intermodulation Rejection	≥60dB	FM Noise	≤-45dB
Audio Power	≥600mW	Audio Distortion	<5%

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
