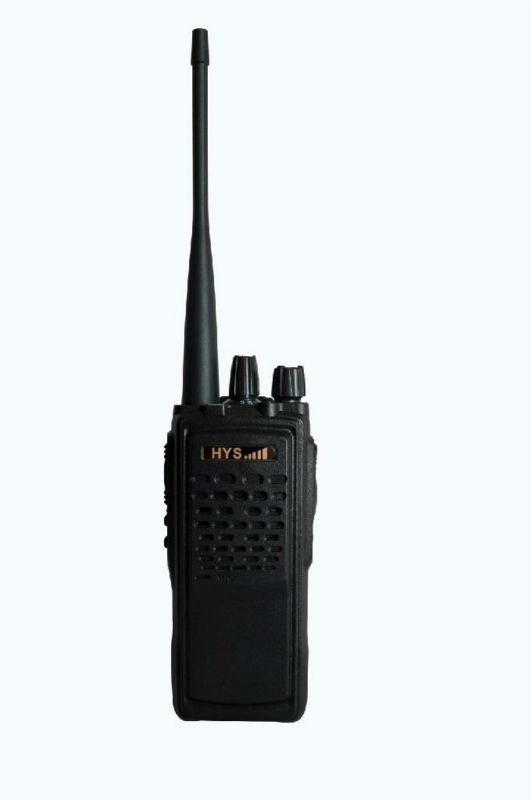

Tc-8W UHF400-470MHz 3000mha Battery Handheld 2-Way Radio
Product Specifications
| Prod Model: |
2-way radio UHF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
400-470MHz |
| Memorychannels: |
16 |
| Weight(Approx.): |
249g |
| Dimension(Approx.): |
111*54*34mm |
| Operating Temperature: |
-20 to +60 |
| Ctcss/DSC: |
Yes |
| Battery Capacity: |
3000mAh Li-ion |
| Dtmf: |
Yes |
| PC Programming: |
Yes |
| Flashlight: |
Yes |
| Style: |
Handheld |
| Talk Range: |
8-12km |
| Usage: |
Army |
| Battery Type: |
Lithium Battery |
| Type: |
Handheld |
| Display: |
Without Display |
| Working Frequency Range: |
UHF Segment |
Product Description
Main features
1. Frequency Range UHF 400-470MHz
2.16 channels
3. Output power: 8w
4. Low Power Remind
5. PC software programmable, Encrypted programming software
6. VOX function
7. CTCSS/DCS
8. Chinese and Engllish voice prompt
9. Power saving function
10. High/low power selective
11. Wide/narrow bandwidth selective
13. Flashlight
15. Busy channel lock
16. Transmitter time-out timer(TOT)
17. Side key assignment
18.0-9 grades squelch level setting
|
Model |
TC-8W two-way radio |
|
GENERAL |
Frequency Range |
400-470Mhz |
|
Number of Channels |
16 |
|
Working Voltage |
7.4V LI-ION |
|
Working Temperature |
-20°C~+60°C |
|
Frequency Stability |
±2.5ppm |
|
Size(H*L*W) |
111*54*34mm |
|
Weight |
249g |
|
TRANSMR |
Power Output |
8W |
|
Modulation |
F3E |
|
Radiation |
<-60dB |
|
Power |
>55/65dB |
|
Modulation Limit |
±2.5/5KHz |
|
Distortion |
≤5% |
|
Noise Response |
34/40dB |
RECEIVER |
Sensitivity |
<0.20µV |
|
Neighbour Channel Selectivity |
≥60/70dB |
|
Noise Response |
≥65/70dB |
|
Audio Power |
500mW |
|
Audio Distortion |
≤5% |
|
Intermodulation Distortion |
≥60dB |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
