Product Specifications
| Prod Model: |
TC-S1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Mini Ham Two Way Radio |
| Brand Name: |
Hys |
| Model: |
Tc-S1 |
| Color: |
Black |
| Frequency Range: |
UHF: 400-470MHz |
| Memory Channels: |
16 |
| Channel Spacing: |
25/12.5kHz |
| Working Mode: |
Co-Channelsordis-Channelssimplex |
| Voltage: |
DC7.2V |
| Battery: |
1000mAh/1500mAh/1800mAh/2200mAh(Li-ion) |
| Wavelength And Frequency: |
Middle-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description

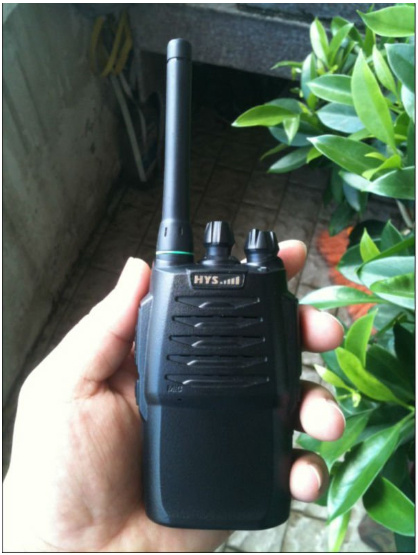

TC-S1 Single band VHF or UHF Mini Ham Two Way Radio
Product Description:
Main Function:
1.Frequency range: 400~470MHz
2.Output power: 3W
3.Operating temperate: -20°C~+50°C
4.Operating voltage: DC 3.6V [Li-ion]
5.Simple model, no display, no keypad, new designed style, exquisite appearance, sell at a low price, with common functions:
6.Push to talk function, monitor function
7.voice prompt
8.time out timer
9.battery save function
10.low battery warning function
11.built-in QT and DQT
Specifications:
General Specifications:
Frequency Range: 400-470MHz
Memory Channels: 16
Channel Spacing: 25/12.5KHz
Working Mode: Co-channelsordis-channelssimplex
Voltage: DC7.2V
Battery: 1000mAh/1500mAh/1800mAh/2200mAh(Li-ion)
Average batteryl fe(at5/5/90dutycyclewithbatterysaver): 1500mAh(Li-ion)About15hrs
Frequency Stability: ±2.5ppm
Operating Temperature: -20°C/+50°C
AntennaI mpedance: 50Ω
Dimensions(HxWxD)(mm)(W/Battery,W/oAntenna): 100mm×60mm×34mm
Weight: About 200g
Transmitter:
Power Output: 2-3W
Maximum Deviation: ≤5KHz
Audio Distortion: ≤3%
Modulation Characteristic: +3dB--3dB
Adjacent Channel Power: ≥65dB
Spurious Radiation: ≤7.5μW
Occupied Bandwidth: ≤16KHz
S/N: 40/34dB
Receiver:
RF Sensitivity: <0.2μV
Audio Distortion: ≤3%
Audio Response: +2dB--10dB
Adjacent Channel Selectivity: ≥60dB
Intermodulation Rejection: ≥60dB
Spurious Response: ≥60dB
Block Characteristic: ≥85dB
S/N: 40/34dB
