Dongguan Yuanyao Electronics Technology Co., Ltd. >> Test Machine Environmental Humidity Machine

Test Machine Environmental Humidity Machine

Name: Test Machine Environmental Humidity Machine
Brand: China-Manufacturer-Directory.com
SKU: 675267341
Availability: InStock
Rating: 4.4 (101 reviews)

Supplier:	Dongguan Yuanyao Electronics Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YTH-225
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Circulation:	Sirocco Fan
Material:	Stainless Steel
Insulation:	PU&Fiberglass Wool
Internal Size(Mm):	500750600
Humidity Range:	20%-98%Rh
Controller:	Digital Electronic Indicators
Service:	Customization
System Capacity:	120 Patterns*1200steps
Output:	Pid+SSR
Certification:	CE
Type:	Universal Testing Machine
Power Source:	AC220V; AC380V

Product Description

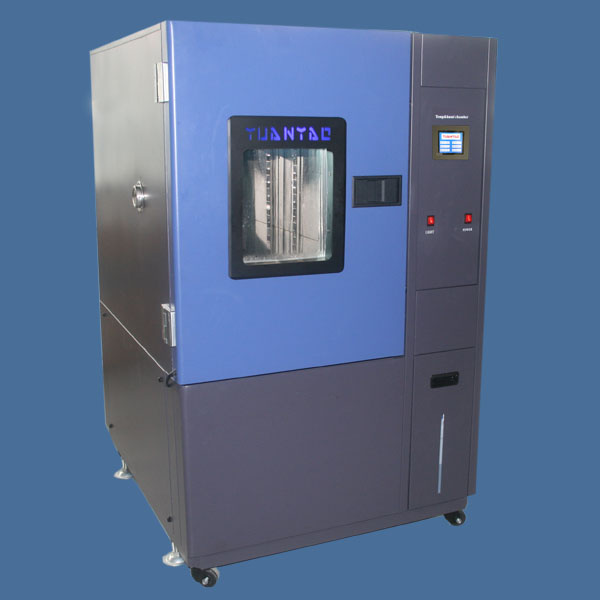

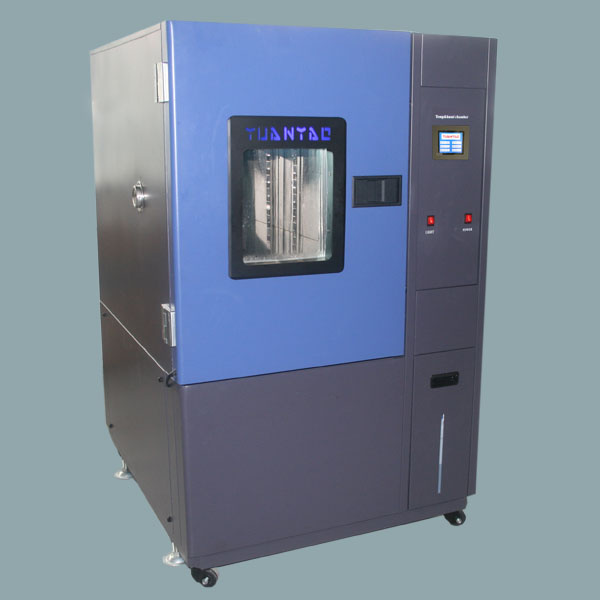

Temperature ang Humidity test chamber

Application

To test the fiber, LCD crystal, inductor, PCB, batteries, computers, mobile phones and other products whether can suit high temperature resistance, low temperature and moisture.

Package and Delivery

Package: Wooden cases, suitable for a long distance sipment
Delivery: In 15-20 working days after order confirmation

Specifation

1. Humidity range: 20%-98%RH
2. Circulation: Sirocco Fan
3. Heating: High Speed Heater
4. Excellent performance
5. Resonable price

Feature

1. PID + SSR micro-computer control, operation easy and steady.
2. It could sign in 10patterns*100 steps. Each pattern can be executed up to 999 times, the maximum execution time of each steps reaches 99 hours and 59 minutes.
3. Adopt the liquid-crystal 3.1' controller, English display.
4. Equipped with 10 years memory device in case of power failure. There are 3 modes-hot, cold and stop for restarting the machine.
5. Can display temperature, humidity, current program and transferred into curves immediately.

If you are interested in the item, please contzct me. Look forward to serving you needs.

Model			YTH-080	YTH-150	YTH-225
Internal Dim.(mm) W×H×D			400×500×400	500×600×500	500×750×600
External Dim.(mm) W×H×D			900×900×1500	950×1500×1050	950×1650×1150
Temperature Range			-70°C ~+150°C
Humidity Range			20%~98%RH
Performance	Temp.&Humi.Constancy		±0.2°C ±2.5%RH
	Temp.&Humi.Uniformity		±0.5°C;±4.0%RH
	Indication resolution		0.01°C;0.01%RH
	Heat-at Time(20°C-HT)	°C	100 150	100 150	100 150
		min	30 40	30 40	30 45
	Pull-down Time(20°C-LT)	°C	0 -20 -40 -60 -70	0 -20 -40 -60 -70	0 -20 -40 -60 -70
		min	25 40 50 80 90	25 40 50 80 90	25 40 50 80 90
Material	Exterior		Stainless steel plate+Powder Coated
	Interior		SUS#304 stainless steel plate
	Insulation		PU & Fiberglass wool
System	Circulation		Siroco fan
	Heating		SUS#304 stainless steel high-speed heater
	Humidifying		Surface evaporating system
	Cooling		Airtight compressor+vaporator fins+air-cooling condenser
	Dehumidifying		ADP Critical dewpoint cooling/dehumidifying method
	Controller		Digital electronic indicatrs+S.S.R.With PIDautomatic calculation capabilty
Other Components			Vacuum glass inspectin window,cable port( 60mm),control status indicator lights,chamber lamp,experment separation shelves (freely adjustable 2pcs)

Safety Devices			Ocerheating prevention circuit-breaker,compressor overload protection,control system overload protection, humidifying system overheading drying out prevention,breakdown indicator light

Power Source(K.W.)			AC 1Ψ 220V;3Ψ380V 60/50Hz
			3.0 4.0 6.0 6.0 6.0	2.5 4.0 5.0 8.0 9.0	2.5 4.0 5.0 8.0 9.0

Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.

We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.

We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.

Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.

We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
