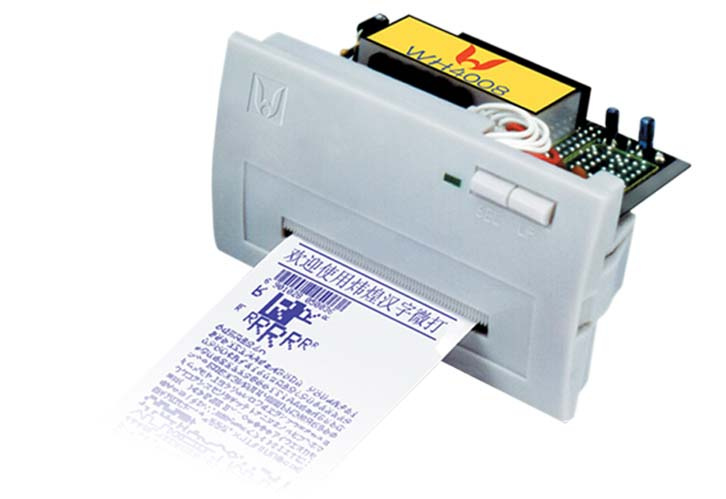

Thermal Bill Printer: Parallel Interface

Name: Thermal Bill Printer: Parallel Interface
Brand: China-Manufacturer-Directory.com
SKU: 677891412
Availability: InStock
Rating: 5 (112 reviews)

Supplier:	Beijing Bright Technology Development Co., Ltd.
Price:	US $ 35.3/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	WH A0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Method:	Direct Thermal Line Printing
Paper Width:	57 Mm
Print Width:	48 Mm
Resolution Ration:	8 Dots/Mm (384dots/Line)
Character Per Line:	64/32/24
Character Size:	6x8dots, 8x16dots, or 12x24dots
Outline Dimension(Wxhxd Mm):	111mmx62mmx63mm
Installation Dimension(Wxh Mm):	103mmx57mm
Inlaid Deepness:	55mm
Type:	Dot-matrix
Usage:	Receipt
Style:	Black and White
Interface Type:	Serial RS232/Ttl&Parallel
Max. Paper Size:	57mm*40mm

Product Description

Direct thermal line printing
Stylish, delicate and elegant appearance
Serial(RS-232C, TTL) interface/Parallel interface
Copy function of LCD screen
Abundant figure/curves/characters print function
Plot rotation printing for expanded letter character set

Item	Specification
Printing method	Direct thermal line printing
Paper width	57 mm
Print width	48 mm
resolution ration	8 dots/mm (384dots/line)
Character per Line	64/32/24
Printing speed	30mm/sec(when the utilization rate is 25%)
Character size	6x8dots, 8x16dots, or 12x24dots
Chinese character library	GB2312, 16x16dots, or 24x24dots
outline dimension(WxHxD mm)	111mmx62mmx63mm
Installation dimension(WxH mm)	103mmx57mm
Inlaid deepness	55mm
Paper supplied	Thermal roll paper (57mm wide, 40mmø )
Interface	Serial(RS-232C, TTL)/Parallel interface
Input Power	DC3.5V-9V, DC 15W/ 5V, 3A, MAX 4A
Operating temperature	5° C~ 50° C
Storage temperature	-20° C~ 60° C
Operating humidity	10% ~ 80%
Storage humidity	10% ~ 90%

Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
