Product Specifications
| Prod Model: |
WH-AA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Speed: |
40mm/S |
| Printing Method: |
Direct Thermal Line Printing |
| Resolution Ration: |
8dots/Mm |
| Usage: |
Receipt |
| Style: |
Black and White |
| Interface Type: |
RS232/Ttl/485,Parallel |
| Type: |
Thermal |
| Max. Paper Size: |
57mm*30mm |
Product Description

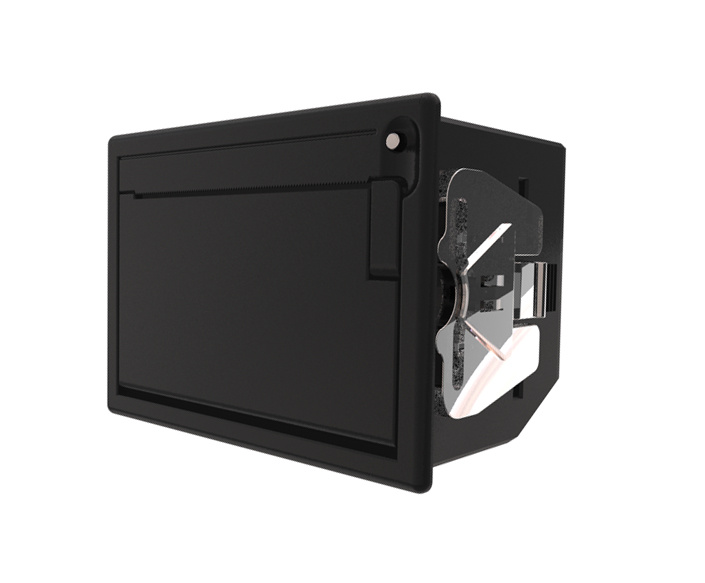

Mini printer, thermal printer, receipt printer, panel printer
Stylish, delicate and elegant appearance
Very silent printing thru direct thermal printing method
Support 3.3V low voltage system
The installation dimension: 78mmx53.5mm
Paper end sensors and self-motion memory printing function
Serial RS-232C, 485, or (serial TTL & Parallel interface)
Add coordinate curve printing function
Abundant figure/curves/characters print function
Easier paper loading
Item Specification
Printing method Direct thermal line printing
Paper out detection paper end sensors function
Paper loading way easy paper loading
Paper width 57 mm
Print width 48 mm
Resolution ration 8 dots/mm(384 dots/line)
Life of printing head 6× 106 character lines
Printing speed 62.5mm/sec (when the character ratio is 1/6. )
Character size 6x8dots, 8x16dots, or12x24dots
Chinese character library GB2312, 16x16dots, or24x24dots
Outline dimension(WxHxD mm) 83mmx58.5mmx47.5mm
Installation dimension(WxH mm) 78mmx53.5mm
Inlaid deepness 45mm
Paper supplied Thermal roll paper (57mm wide, 30mmø )
Interface Serial RS-232C /485 /(serial TTL& Parallel interface)
Input Power DC 5V, 3A
Operating temperature 5° C ~ 50° C
Storage temperature -20° C ~ 60° C
Operating humidity 10% ~ 80%
Storage humidity 10% ~ 90%
