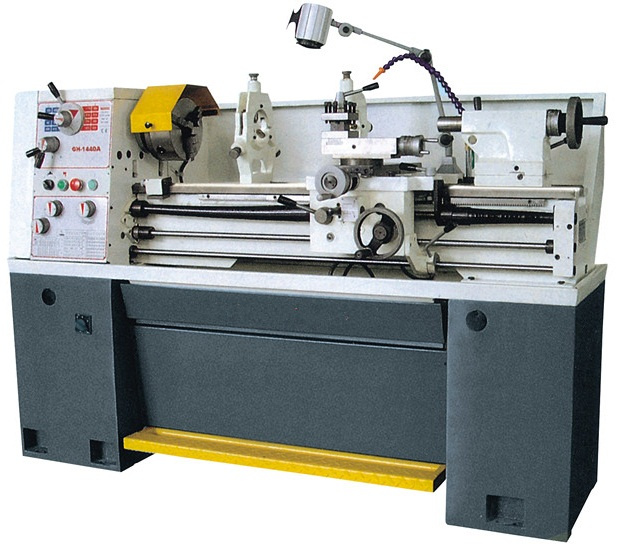

Top Sale 38mm Bore Gh1340A Gh1440A Cheap Engine Lathe Machine

Name: Top Sale 38mm Bore Gh1340A Gh1440A Cheap Engine Lathe Machine
Brand: china-manufacturer-directory.com
SKU: 771519735
Availability: InStock
Rating: 4.9 (82 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 1500-2500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GH1340A GH1440A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	38mm
Max. Swing Over Bed:	330mm 356mm
Distance Between Centers:	750mm 1000mm
Machine:	Lathe
Clour:	Customer Appoint
Voltage:	110V, 220V, 380V
Package:	Fumigated Poly-Wood Case
Payment:	T/T, Paypal, LC, West Union
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	High Precision
Processing Accessory:	Steel Workpiece
Tool Holder:	4-Statio Toolpost

Product Description

Main specification for GH1340A GH1440A lathe machine

Specification		GH1340A		GH1440A
	Max.Swing.over bed	Φ330mm(13)		Φ356mm(14)
General Capacity	Max.Swing.over cross slide	Φ195mm(7-5/8)		Φ210mm(8-5/8)
	Max.Swing.over gap	Φ480mm(19)		Φ506mm(20)
	Bed width	205mm(8)
	Distance between centers	1000mm/750mm(40/30)
Spindle	Taper of spindle bore	MT5
	spindle bore	Φ38(1-1/2)
	Steps of spindle speeds	16steps
	Range of spindle speeds	45-1800rpm
	Spindle nose	D-4
	Metric thread range	0.45~7.5mm(22kinds)
Threading	Inch screw thread range	4~112TPI(40kinds)
and	Range of longitudinal feeds	0.03-0.688mm(0.0011-0.0271in/rev)
Feeding	Range of cross feeds	0.015-0.220mm(0.0003-0.01in/rev)
Leadscrew	Diameter of leadscrew	Φ22mm(7/8)
	Pitch thread of leadscrew	4mm(8T.P.I)
	Travel of tailstock quill	120mm(4-3/4)
Tailstock	Diameter of tailstock quill	45mm(1-25/32)
	Taper of tailstock quill	MT3
	Main motor power	1.5/2.4(3HP)
Power	Coolant pump motor power	0.04(0.055HP)
Overall dimensions of lathe(L×W×H)		1880×720×1440mm	1880×740×1460mm
Packing size of lathe(L×W×H)		1900×760×1460mm	1900×760×1480mm
Net Weight		875kg(1925ibs)	875kg(1925ibs)
Gross Weight		960kg(2112ibs)	1090kg(2112ibs)

Standard accessories:
3-jaw chuck, 4-jaw chuck
coolant system, working light
foot brake, steady rest
follow rest, chasing dial indicator
change gears set, tool box and tools
