Torno Mecanico Universal Hs-CNC20d Swiss CNC Lathe Industrial Tool
| Price: |
US $ 65000-70000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
CNC20D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Diameter: |
20mm |
| Max Processing Length (1 Clamping): |
245mm |
| Positive Spindle Nose Max Drilling Diame: |
10mm |
| Positive Spindle Nose Max Drilling Depth: |
40mm |
| Spindle-Through-Hole Diameter: |
23mm |
| Spindle Rotation Speed: |
60~6000rpm |
| Maximum Tool Max Diameter: |
4X10mm |
| Rotary Tool Maximum Speed: |
5500rpm |
| The Back Spindle Rotation Speed: |
60~6000rpm |
| Machine Weight: |
3500kg |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

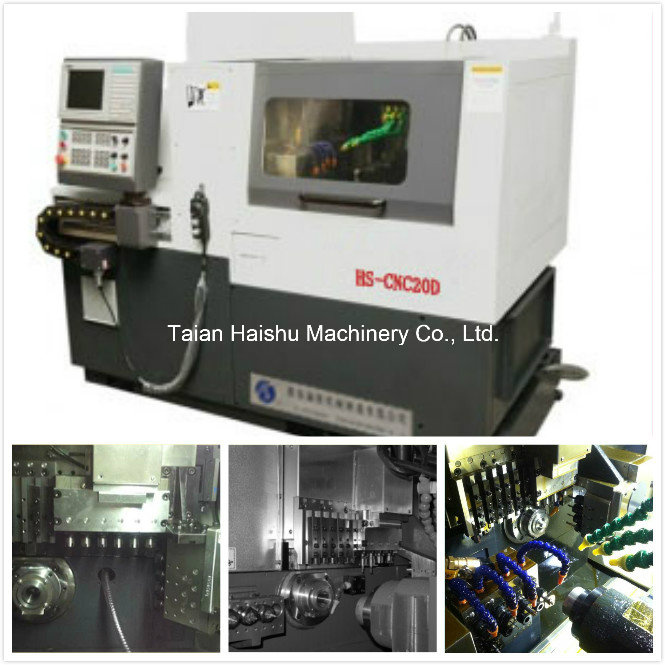

lathe machine
1.Standard configuration:
No. |
Name |
Model or specification |
Remark |
The main parameters: |
1 |
Standard CNC control system |
Taiwan's new generation |
|
2 |
Max diameter |
φ20 |
|
3 |
Max processing length (1 clamping) |
245 |
|
4 |
Positive spindle nose max drilling diameter |
φ10 |
|
5 |
Positive spindle nose max drilling depth |
40 |
|
6 |
Spindle-through-hole diameter |
φ23 |
|
7 |
Spindle rotation speed |
60~6000rpm |
|
8 |
Maximum tool max diameter |
4xφ10 |
|
9 |
rotary tool maximum speed |
5500rpm |
|
10 |
The maximum diameter of the back spindle chuck |
φ20 |
|
11 |
back spindle nose maximum drilling diameter |
φ10 |
|
12 |
The back spindle rotation speed |
60~6000rpm |
|
The number of installations of tool |
13 |
Row of knives turning tools |
6 |
|
14 |
Rotary tool |
4 |
|
15 |
Positive drilling tool |
5 |
|
16 |
The back side of the drilling tool |
4 |
|
Tool size |
17 |
Tool (row knife) |
12X12 |
|
Chuck bushings |
18 |
Spindle collet |
Jinshang S20 |
|
19 |
Bushing |
JinshangS20 |
|
20 |
Back spindle collet |
JinshangS20 |
|
21 |
Rotary tool chuck |
4xER16 |
|
22 |
Bored with the chuck sleeve |
ER16 |
|
Rapid feed rate |
23 |
X1 |
18m/min |
|
24 |
Y |
24m/min |
|
25 |
Z1 |
24m/min |
|
26 |
X2 |
24m/min |
|
27 |
Z2 |
24m/min |
|
Motor |
28 |
Spindle motor |
3.0KW |
|
29 |
Rotary tool motor |
0.75KW |
|
30 |
Back spindle motor |
3.0KW |
|
31 |
Axis motor |
0.75KW |
|
32 |
Center height |
1050mm |
|
33 |
Power capacity |
15KVA |
|
34 |
Air pressure pneumatic device |
0.4MPa |
|
35 |
Machine weight |
3500Kg |
|
36 |
Machine dimensions (length X width X height) |
2100X1350X1800(mm) |
|
The main criteria in Annex |
37 |
Cutting oil installations |
|
|
38 |
Centralized lubrication system |
|
|
39 |
Power Tool |
|
|
40 |
Lighting |
|
|
41 |
Cabinet cooling system |
|
|
42 |
Fully enclosed protective cover |
|
|
43 |
Short pieces of artifacts splice device |
|
|
44 |
Synchronously rotating guide sleeve device |
|
|
Special Select Accessories |
45 |
Mixed guide sleeve (no guide sleeve structure Accessories) |
|
optional |
46 |
Workpiece length piece splice device |
|
optional |
47 |
Y2 + rear axle shaft power head |
|
optional |
48 |
spindle nose power head |
|
optional |
49 |
Deep Hole Drilling Parts |
|
optional |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
