Product Specifications
| Prod Model: |
RYN650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Ryn650 |
| Frequency: |
433/470/868/915 MHz |
| Channels: |
40 |
| Modulation: |
Gfsk |
| Sensitivity: |
-121 dBm |
| Max Output Power: |
500 MW |
| Temperature: |
40 ~ +85 |
| Distance: |
3000m |
| Type: |
Wireless |
| Information Content: |
Data |
| Certification: |
FCC |
| Condition: |
New |
Product Description

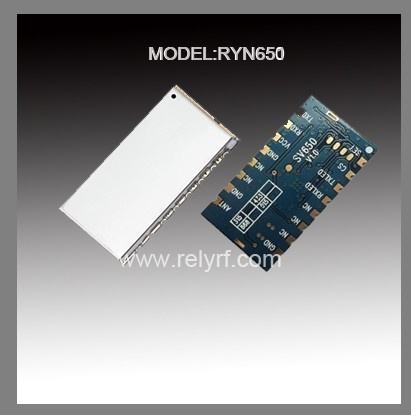

RYN650
Networking Modules
RYN650 is an embedded ultra-small size, high power network node module, which adopts high-performance Silicon Lab Si4432 RF chip. Si4432 has high reception sensitivity and 500mW output power to ensure longer RF range and high link quality. RYN650 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make RYN650 wildly deployed in many fields and applications.
Description >>
RYN650 is an embedded ultra-small size, high power network node module, which adopts high-performance Silicon Lab Si4432 RF chip. Si4432 has high reception sensitivity and 500mW output power to ensure longer RF range and high link quality. RYN650 supports multiple channels and Net ID to enhance the anti-interfere ability. Users can configure the parameters through PC or in circuit. The features of small packet, long distance, wide working voltage and setting in circuit make RYN650 wildly deployed in many fields and applications.
Features >>
3000m RF line-in-sight
[email protected]433/470/868/915 MHz
40 channels
4 bytes net ID
2 bytes node ID
Multiple air data rate
GFSK modulation
Antenna match automatically and bi-direction switch control
Support Serial port parameter setting
Sensitivity: -121 dBm
Max output power: 500 mW
Temperature: -40 ~ +85
Application >>
Remote telemetry
Auto meter reading
Security systems
Data logger
Wireless data communication
Building residential automation and security
Healthy monitoring
Wireless PC peripherals
Access Control System
Robot control
Parameter
| Min.
| Typ.
| Max.
| Unit
| Conditions
|
Operation conditions
|
Supply Voltage
| 3.3
| 5.0
| 7.5
| V
| TTL Level
|
Operating
Temperature
| -40
| 25
| +85
|
|
|
Current consumption
|
RX Current
|
| 25
|
| mA
| TTL Level
|
| 34
|
| mA
| 485Level
|
TX current
|
| 350
|
| mA
| @27dBm
|
Sleep Current
|
| < 5
|
| uA
| @TTLLevel
|
RF parameters
|
Frequency
| 414.92
| 433.92
| 453.92
| MHZ
| @433MHZ
|
470.92
| 470.92
| 509.92
| MHZ
| @470MHZ
|
849.92
| 868.92
| 888.92
| MHZ
| @868MHZ
|
895.92
| 914.92
| 934.92
| MHZ
| @915MHZ
|
Air data rate
| 1.2
| 9.6
| 38.4
| Kbps
| GFSK
|
Output power
| 20
| /
| +27
| dBm
| Setting by software
|
Sensitivity
|
| -121
|
| dBm
| @1.2kbps
|
