Product Specifications
| Prod Model: |
TDS-100M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pipe Diameters: |
From 15mm to 6000mm |
| Output: |
RS485 .4-20mA and Oct |
| Input: |
4-20mA and PT100 Platinum Resista |
| Display: |
2×20 English Letters LCD |
| Keypad: |
4 Key Tactile-Feedback Membrane |
| Protection: |
IP57 |
| Installation: |
Operate with Clamp on, Ins |
| Power Supply: |
8-36VDC~24VDC |
| Date Totalizers: |
Record as Much as 128 Se |
| Modbus Registers: |
All The Data Can Be Ret |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Accuracy: |
>?à1% |
| Main Application: |
Alcohol, Beer, etc. |
| Measuring Principle: |
Transtime |
| Measurement Object: |
Clamp on, Insertion and Flow-Cell Transducer |
| Size: |
Dn15mm to 6000mm |
| Sensor: |
Clamp on, Insertion and Flow-Cell Transducer |
Product Description
ultrasonic flow meter,water flow meter,ultrasonic water flow meter
1.Overview

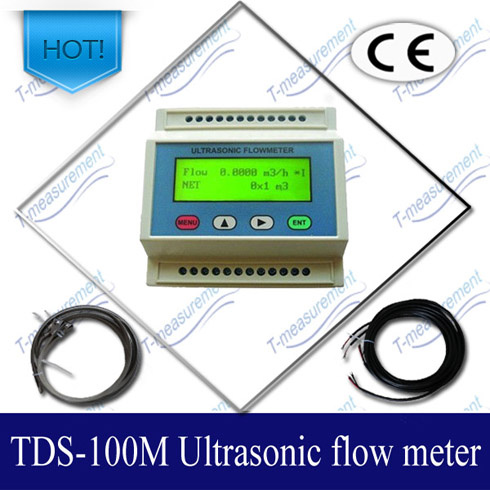

| TDS-100M Ultrasonic flow module |
| The TDS-100M modular ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels, The design of the meter is intended to provide for users like system integrators and OEM users with a lowest cost but of high performance flow meter. |
| 1. | Power supply: 8-36VDC |
| 2. | Output: RS485 .4-20mA and OCT |
| 3 | Input: 4-20mA and PT100 platinum resistance |
| 4. | Display: 2×20 English letters LCD |
| 5. | Keypad: 4 key tactile-feedback membrane |
| 6. | Protection: IP57 |
| 7. | Installation: Operate with clamp on, insertion and flow-cell transducer |
| 8. | Pipe diameters from 15mm to 6000mm |
2.TDS-100M Accessories
1.5m×2 Transducer Cable for sensor
2. Clamp Fixture
3. Spare Connectors
3.Technical Parameters
| Model Number | TDS-100M ultrasonic flow meter |
| Accuracy | better than 1% |
| Repeatabilty | better than 0.2% |
| Serial port | RS232 and RS485 |
| Analog inputs | One or two |
| Analog output | Optional 4-20mA |
| OCT output channels | Two |
| Sew water | ability to measure |
| Types of transducer | 4 kinds of different can be used, addition with user-defined transducers |
| Flash memory | All the parameters can be solidify into the flash memory |
| Several optional function module to be chosen to add to the main module |
| The internal universal serial bus enables several output modules to be connected to it. |
| Communication protocol | 3 different kinds of communication protocol supported by the same time, include MODBUS |
| Data logger/printer | built-in data logger/printer |
| OCT output | Programmable pulse width of OCT output |
| Parallel interface for display and keypad. |
| Operate | easy to operate |
| Digital inputs | can be inputted by used of the analog inputs |
| Power supply | 8-36VDC~24VDC |
| Batch controller | full programmable built-in batch controller can be started by key-pressing, inputs to the analog inputs or through MODBUS protocol |
| Date totalizers | Record as much as 128 sets of data by day, 64 sets of data by month. |
| MODBUS registers | All the data can be retrieved by use of the MODBUS registers |
4.Packaging & Shipping
| Packing | Carton |
| Mini order quantity | 1 set |
