Universal CNC Lathe Grinding Tools
Product Specifications
| Prod Model: |
VIK-5C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Xaxis Travel (Left;Right): |
320 mm |
| Yaxis Travel (Front;Back): |
260 mm |
| Zaxis Travel(up;Down): |
220 mm |
| Spindle Taper: |
31.75/20 Grinding Wheel Shaft |
| Spindle Transmission Form: |
Electric Spindle |
| Three-Axis Rapid Traverse: |
15/15/15m/Min |
| Spindle Driving System: |
Frequency Electric Spindle |
| A Axis Min Scale Unit: |
0.00001° |
| Spindle Speed: |
7000 Rpm |
| A Axis Swing Diameter: |
320 mm |
| Type: |
Vertical Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

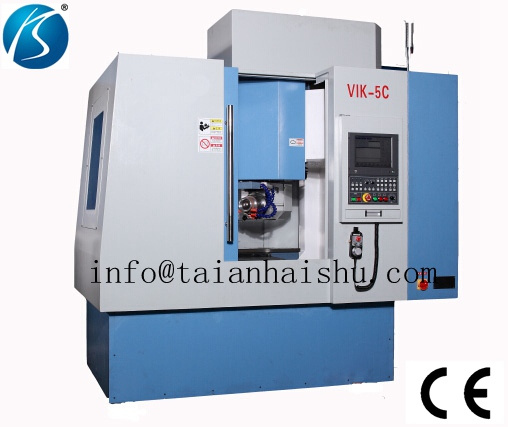

CNC TOOL GRINDER
VIK-5C
Specifications
Xaxis travel (Left;Right): 320 mm
Yaxis travel (Front;Back): 260 mm
Zaxis travel(Up;Down): 220 mm
A axis travel: 360°
C axis travel: 230°
A axis Collet range: Φ0.3~Φ20 mm
A axis Swing diameter: Φ320 mm
A axis Min scale unit: 0.00001°
A axis Max.speed: 30 rpm
Spindle Taper: 31.75/20 grinding wheel shaft
Spindle speed: 7000 rpm
Spindle Transmission form: Electric Spindle
Three-axis rapid traverse: 15/15/15m/min
Mini,input unit: 0.001 mm
Spindle power: 7.5/12.5 KW
Spindle driving system: Frequency electric spindle
Feeding and driving system: (AC Servo)
Lubrication System: 2 L
Air pressure: 0.6 mPa
Power Capacity: 25 KVA
Dimensions: 2.2X1.4X2.4
Overall weight: 6000Kg
| Travel | Xaxis(Left;Right) | 320 mm |
| Yaxis(Front;Back) | 260 mm |
| Zaxis(Up;Down) | 220 mm |
| A axis | 360° |
| C axis | 230° |
| A axis | Collet range | Φ0.3~Φ20 mm |
| Swing diameter | Φ320 mm |
| Min scale unit | 0.00001° |
| Max.speed | 30 rpm |
| Spindle | Taper | 31.75/20 grinding wheel shaft |
| Spindle speed | 7000 rpm |
| Transmission form | Electric Spindle |
| Movement | Three-axis rapid traverse | 15/15/15m/min |
| Mini,input unit | 0.001 mm |
| Motor | Spindle power | 7.5/12.5 KW |
| Spindle driving system | Frequency electric
spindle |
| Feeding and driving system | (AC Servo) |
| Others | Lubrication System | 2 L |
| Air pressure | 0.6 mPa |
| Power Capacity | 25 KVA |
| Dimensions | 2.2X1.4X2.4 |
| Overall weight | 6000Kg |
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
