Variable Speed Metal Lathe Cjk6150b-1 Lathe Machine and Modern Machine Tools
Product Specifications
| Prod Model: |
CJK6150B-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Swim Over Bed: |
500mm |
| Max.Swim Over Carriage: |
290mm |
| Max.Length Of Work Piece: |
750/1000/1500mm |
| Range Of Spindle Speed: |
20-100 100-550 400-1600rpm |
| Spindle Bore: |
80mm |
| Taper Of Spindle Bore: |
1:20 |
| Min.Setting Unit Of Motor: |
(Z) Long 0.001mm,(X) Cross 0.001mm |
| Moving Speed Of Post: |
(Z) Long 10m/Min,(X) Cross 8 M/Min |
| Max.Range Of Tailstock Quill: |
150mm |
| Motor Power: |
7500W |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Certification: |
TUV |
Product Description

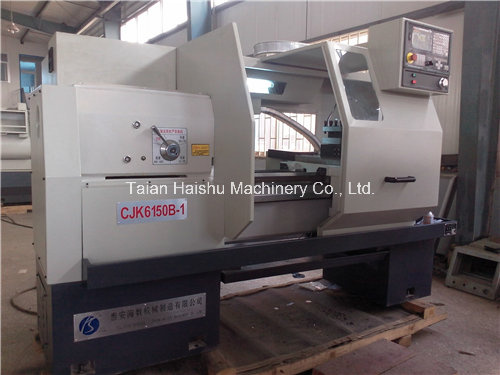

variable speed metal lathe CJK6150B-1 CNC lathe torno paralelo
Main features
1. Spindle brake way by electric brake
2.Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor
3.Imported or homemade CNC system
4.Rotary various workpiece surface automatically turning,precision maching
5.The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high hardness,grinding the surface with high accuracy.
6.The carriage adopts plastic paste processing.wear small,high precision,long life.
7.Electronic hand wheel equipped,easy operation.
Specifications
ITEMS |
Specifications |
Max.swim over bed |
500mm |
Max.swim over carriage |
290mm |
Max.length of work piece |
750/1000/1500mm |
Range of spindle speed |
20-100;100-550;400-1600rpm |
Spindle bore |
82mm |
Taper of spindle bore |
1:20 |
Stations of tool carrier |
4/6/8/or gang-type tool carrier |
Min.setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long10m/min,(X) cross 8 m/min |
Taper of taikstock quill |
MT5 |
Max.range of tailstock quill |
150mm |
Motor power |
7.5KW |
Packing size(lenghtwidthheight) |
2600/2850/3350 mm1300 mm1750mm |
Net weight |
2600/2800/3200kg |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
