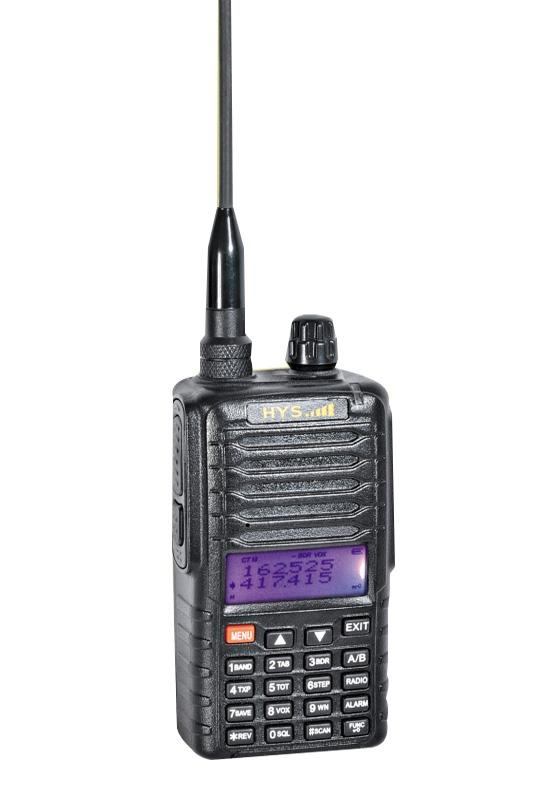

VHF&UHF Dual Band Portable Two Way Radios (TC-VU88)

Name: VHF&UHF Dual Band Portable Two Way Radios (TC-VU88)
Brand: china-manufacturer-directory.com
SKU: 678887785
Availability: InStock
Rating: 4.6 (56 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TC-VU88
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	Vhf&UHF
Fm Radio:	Yes
Tot:	Yes
Vox:	Yes
Backlight:	Yes

Product Description

Main Functions:
1. U&V, U&U, V&V, V&U
2. Dual frequency display
3. Dual frequency standby
4. DTMF
5. ANI code
6. FM radio
7. Backlight
8. H/L power
9. All calls, group calls
10. Emergency alarm
11. TOT
12. VOX
13. W/N band shift
14. Busy channel lockout
15. Keylock
16. PTT-ID
17. Reverse frequency
18. Low power alarm
19. Wired Cloning
20. PC programming

TC-VU88
General Specification
Frequency Range	FM:87-108MHZ	Frequency combination	Phase lock loop frequency synthesize
	VHF:136-174MHZ
	UHF:350-390MHZ, 400-470MHZ
	480-520MHZ
Memory Channels	128 Channels	Operating Voltage	DC7.4V
Channel Spacing	12.5/25KHz	Battery Capacity	1400MAH(Li-ion battery)
Frequency Stability	±2.5PPM	CTCSS/DSC	CTCSS:50 DCS:105
Antenna Impedance	50Ω	Operating Temperature	-10ºCto +60ºC
Weight(approx.)	205g(Except battery and antenna )	Dimension(approx.)	58×105×38mm (Except Antenna)
Transmitter(Testing under TIA/EIA-603 standard)
Output Power	≤4W (H) /1W (L)	Modulation Mode	16K¢F3E
MAX. Frequency Deviation	≤±5.0KHz	Frequency Stability	±5ppm
Spurious Radiation	≤60dB	Residual Modulation	≤-35dB
Modulation Distortion	≤5%(300-3000Hz)	FM Noise	≤-40dB
Audio Distortion	≤5%	CTCSS Frequency Deviation	0.75KHz±50Hz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity	≤0.20uV	Operating Bandwidth	≥±7KHz
Squelch Sensitivity	≤0.15uV	Frequency Stability	±5ppm
Adjacent channel selectivity	≥60dB	Spurious Rejection	≥60dB
Intermodulation Rejection	≥60dB	FM Noise	≤-45dB
Audio power	≥600mW	Audio Distortion	<5%
Meet U.S.A Military Standards (MIL-SID-810C/D/E)
