Supplier: | WMT CNC INDUSTRIAL CO., LTD. |
---|---|
Price: | US $ 4770-6461/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB |
![]() |
Prod Model: | VMC24L |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Worktable Size: | 810*240mm |
X Axis Travel: | 380mm |
Y Axis Travel: | 240mm |
Z Axis Travel: | 370mm |
Main Power: | 2.2kw |
Spindle Speed: | 6000rpm |
Spindle: | Bt30 |
Type: | Worktable Milling Machine |
Object: | Sheet |
Controlling Mode: | CNC |
Automatic Grade: | Automatic |
Precision: | High Precision |
Structure: | Vertical CNC Milling Machine |

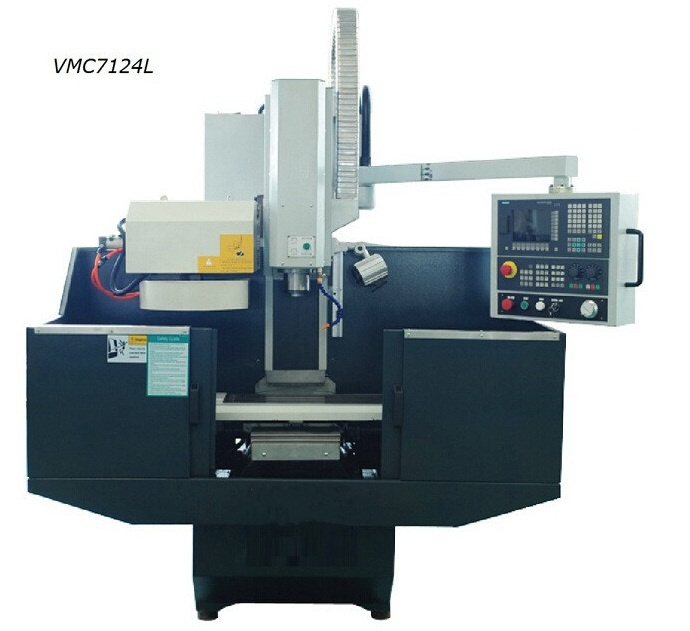

Item | Specification | Unit | VMC7124L |
Worktable | Worktable size (LxW) | mm | 810x240 |
Max loading of worktable | kg | 100 | |
T slot (width-qty-gap) | 16x3x60 | ||
Travel | X-axis | mm | 380 |
Y-axis | mm | 240 | |
Z-axis | mm | 370 | |
470 (optional) | |||
Distance between spindle nose and worktable | mm | 60-430 | |
Distance between spindle center to column | mm | 309 | |
Spindle | Spindle speed | r/min | 100-6000 |
Tool holder type | BT30 | ||
Tool clamping way | Pneumatically | ||
ATC capacity | pcs | ||
Feeding | Cutting feeding speed | mm/min | 0-2000 |
Fast moving speed | mm/min | 15 | |
Accuracy | Positioning accuracy | mm | 0.025 |
Repeatability | mm | 0.016 | |
Motor power | kw | 2.2/3.7kw(servo | |
Motor | Feeding motor power (X/Y/Z) | kw | 1.5/1.15/1.5 |
Other | N.W./G.W. | kg | 1280 |
Overall size(LxWxH) | mm | 1770x1650x1300 |
