Product Specifications
| Prod Model: |
XK7118 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Worktable Size: |
650*180mm |
| X Axis Travel: |
300mm |
| Y Axis Travel: |
130mm |
| Z Axis Travel: |
220mm |
| Main Power: |
1.1kw |
| Spindle Speed: |
3000rpm |
| Spindle: |
Bt30 |
| Type: |
Worktable Milling Machine |
| Object: |
Sheet |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Structure: |
Vertical CNC Milling Machine |

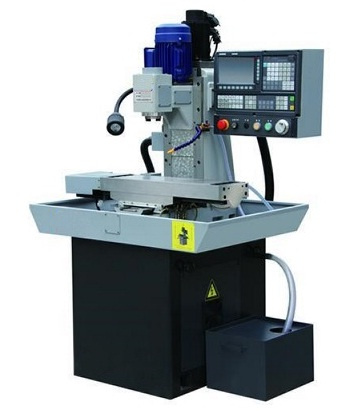

Product Description
Main Specification:
| Specification | X7118 |
| Main motor power | 1.1kw |
| Highest spindle speed | 3000rpm |
| X/Y/Z to the motor torque | 4/4/6N.M |
| The spindle taper hole | BT30 |
| Table size | 650x180mm |
| X/Y/Z axis travel | 300x130x220mm |
| Distance between spindle center and surface column | 230mm |
| The distance of spindle end face to the workbench | 35-270mm |
| Rapid movement(X/Y/Z) | / |
| T-slot | 3/14/30 |
| Table load | 150kgs |
| Positioning accuracy | 0.02mm |
| Repeat posotioning accuracy | 0.01mm |
| Machine tool appearance size(L x W x H) | 1000x850x1470mm |
| Net.Weight | 620kgs |
Standard accessories:
| spindle speed: 60-3000rpm |
| X/Y/Z travel: 300/130/220mm |
| casting iron machine stand with oil tray |
| manual tool changing |
| auto lubricating system |
| spindle cclamping kit |
| Main power: 1.1kw |
| semi-cover |
Optional accessories:
SIMENS 808D controllerWarmly welcome to contact with us!
Tel: 0086 566 2091958
Fax: 0086 566 2091968
We are engaged in the business line of various machine tools, ranging from common machines to CNC ones. Our main products are lathes, milling and drilling machines, grinding machines and forming machines CNC machining centers and so on. Installed and tested by professional techniques, the machines are of high quality and able to meet up to international standard. We have achieved marvelous success during the past few years, winning praise from our clients all over the world. The machines that we produce enjoy wide popularity across the world. Our facility and equipment along with a focus on education keep us on the top of this field. In order to keep pace with international standard, we spare no effort to develop new products. Our company mission is to create a serious, trusted and everlasting partnership with all our clients.
Sincerely, we are looking forward to entering into business relation with you in the near future.
