Waterproof Lpv100W Switching Output Power Supply

Name: Waterproof Lpv100W Switching Output Power Supply
Brand: china-manufacturer-directory.com
SKU: 695756582
Availability: InStock
Rating: 4.8 (31 reviews)

Supplier:	Yueqing Hongyin Electric Co., Ltd.
Price:	US $ 15/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LPV100W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	51 - 100W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Brand:	Hongyin

Product Description

100W Single Output Waterproof Switching Power Supply LDV-100 series

1-Specification

SPECIFICATION
OUTPUT
Model	LDV-100-12		LDV-100-24
DC Voltage	12V		24V
Rated Current	8.3A		4.2A
Current Range	0-8.3A		0-4.2A
Rated Power	100W		100W
Ripple & Noise	120mVp-p		120mVp-p
Voltage Adj. Range	±10%		±10%
Voltage Tolerance	±1%		±1%
Inlet Stability	±0.5%		±0.5%
Load Stability	±0.5%		±0.5%
Setup, Rise, Hold Up Time	800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

INPUT
Voltage Range	176~264VAC
AC Current	2A/115V 1A/230V
Efficiency	76%	79%
Inrush Current	Cold-start current 30A/115V 60A/230V

PROTECTION
Over Load	105%~150%
	Plusing hiccup shutdown Reset: auto recovery

ENVIRONMENT
Working Temp., Humidity	-10ºC~+60ºC(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity	-20ºC~+85ºC, 10%~95%RH
Temp. Coefficient	±0.03%/ºC(0-50ºC)
Vibration	10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	UL1012TUV EN60950(IEC950,UL1950),IP67
EMC Standard	CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS
Dimension	2206710mm(LWH)
Weight	1.3Kg

   2-Function and Features:

     1. Universal AC input/ Full range
2. Installed on DIN rail TS35/ 7.5 or 15
3. Protection: short circuit, over-load, over-voltage.
4. Isolation Class 2
5. Approvals: UL/ CUL/ TUV/ CB/ CE
6. LED indicator for power on
7. Cooling by free air condition
8. 100% full load burn-in
9. 2 years warranty

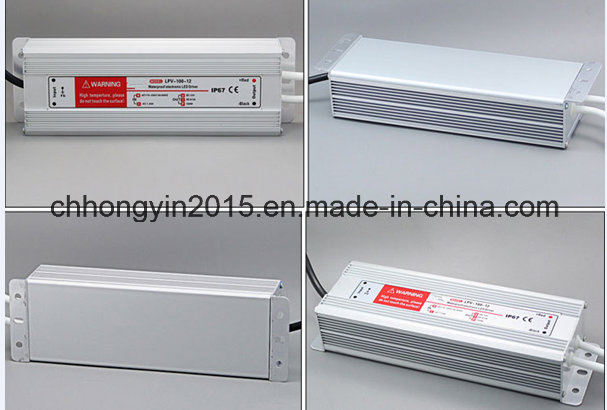

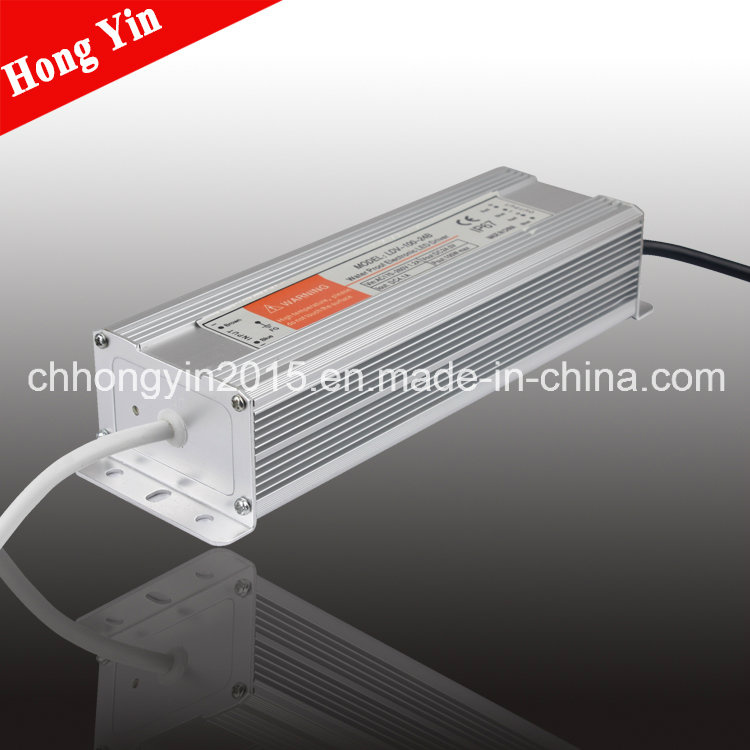

3-Photo:

4-FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. HongYin people always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gotten through CE, RoHs standard

5-Our company delivery and shippments:

6- Certification

   CE and RoHS
   CE and RoHS
