Product Specifications
| Prod Model: |

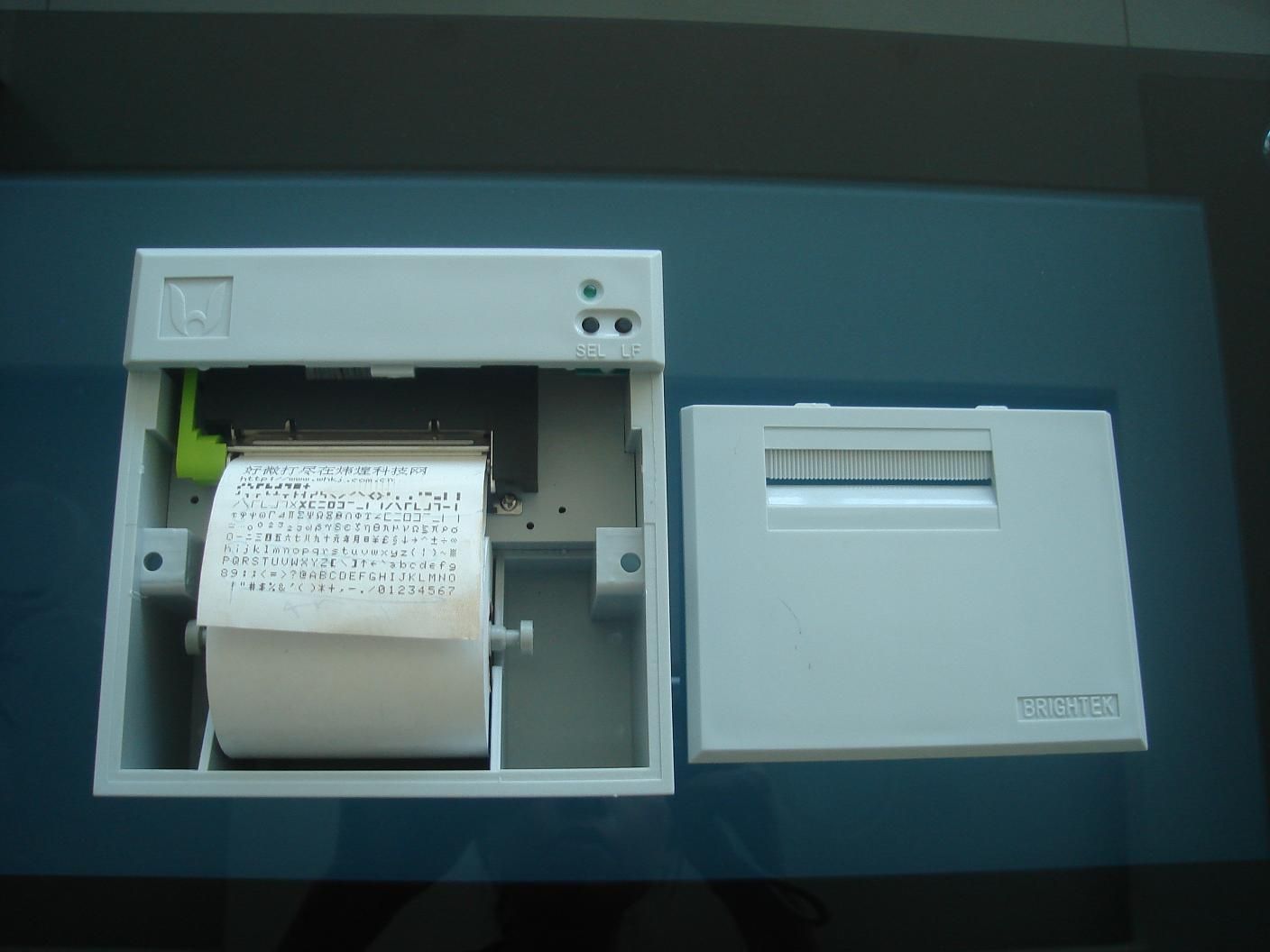

WHA2 thermal mini printer panel printer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Method: |
Direct Thermal Line Printing |
| Paper Loading Way: |
Easy Paper Loading |
| Paper Width: |
57 Mm |
| Print Width: |
48 Mm |
| Resolution Ration: |
8 Dots/Mm(384 Dots/Line) |
| Life Of Printing Head: |
6× 106 Character Lines |
| Printing Speed: |
30mm/Sec (When The Utilization Rate Is 25%. ) |
| Character Size: |
6X8dots, 8X16dots, Or12X24dots |
| Chinese Character Library: |
GB2312, 16X16dots, Or24X24dots |
| Outline Dimension(Wxhxd Mm): |
120mmx120mmx55.5mm |
| Interface Type: |
Serial / Parallel |
| Type: |
Thermal Printer |
| Max. Paper Size: |
57mm |
Product Description
1. Stylish, delicate and elegant appearance
2. Very silent printing thru direct thermal printing method
3. High speed and low power consumption option
4. Serial (RS-232C, TTL) interface/Parallel interface
5. Function setting, prompting for self-motion print
6. Abundant figure/curves/characters print function
7. Easier paper loading
Item Specification
Printing method Direct thermal line printing
Paper loading way easy paper loading
Paper width 57 mm
Print width 48 mm
Resolution ration 8 dots/mm(384 dots/line)
Life of printing head 6× 106 character lines
Printing speed 30mm/sec (when the utilization rate is 25%. )
Character size 6x8dots, 8x16dots, or12x24dots
Chinese character library GB2312, 16x16dots, or24x24dots
Outline dimension(WxHxD mm) 120mmx120mmx55.5mm
Installation dimension(WxH mm) 115mmx115mm
Inlaid deepness 52.5mm
Paper supplied Thermal roll paper (57mm wide, 50mmø )
Interface Serial(RS-232C, TTL)/Parallel interface
Input Power DC5V, 3A, MAX 4A
Operating temperature 5° C ~ 50° C
Storage temperature -20° C ~ 60° C
Operating humidity 10° C ~ 80° C
Storage humidity 10° C ~ 90° C
