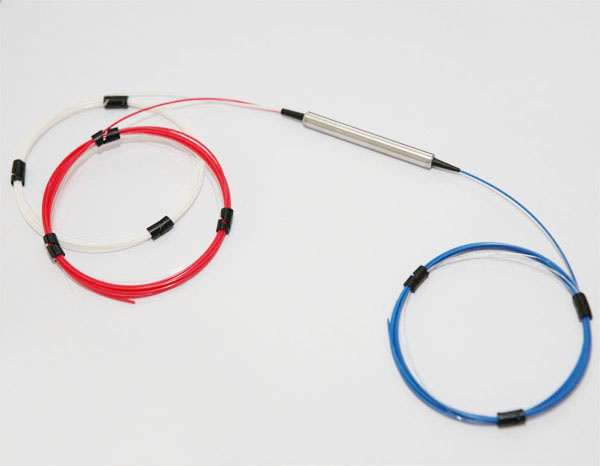

1600nm Polarization Insensitive Optical Circulator

Name: 1600nm Polarization Insensitive Optical Circulator
Brand: China-Manufacturer-Directory.com
SKU: 698868385
Availability: InStock
Rating: 4.7 (143 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Telecommunication
Support Network:	Fiber Optic Component
Type:	Fiber Optic Products

Product Description

1600nm Polarization Insensitive Optical Circulator

Features
. Low Insertion Loss
. High Return Loss
. Wide band High Isolation
. Compact In-Line Package
. High Stability and Reliability
. Epoxy Free Optical Path

Applications
. Fiber Optic Instruments
. Metro Areaa Network
. Wavelength Add/Drop
. Dispersion Compensation
. Bi-Direcation Communication

Specifications

Parameter	3 Port
Operating wavelength (nm)	1550~1650
Isolation@1550nm at 23 degree (dB)	≥ 40
Isolation@1650nm at 23 degree (dB)	≥ 32
Insertion Loss@1550nm at 23 degree(dB)	≤ 0.8
Insertion Loss@1650nm at 23 degree(dB)	≤ 1.1
TDL(dB)	≤ 0.25
PDL (dB)	≤ 0.2
Return loss (dB)	≥ 50
Cross Talk (dB)	≥ 60
PMD(ps)	≤ 0.1
Power handling (mW)	≤ 500
Tensile Load(N)	5
Fiber Type	SMF-28e For all ports
Operating temperature (degree )	-5 ~ +70
Storage temperature (degree )	-40 ~ +85
Dimensions (mm)	dia5.5x50

*Specifications are for device without connectors.
*For devices with connector, IL will be 0.3dB higher, and RL will be 5dB lower.

Ordering Information

Wavelength	Pigtail Style	Fiber Length	In/Out Connector
1600=1550~1650nm	1=250um Bare fiber 2= 400um Fiber 3=900um Loose Tub S=Specify	1=1m 2=2m S=Special	0=None 1=FC/APC 2=FC/PC 3=SC/SPC 4=SC/PC 5=ST 6=LC S=Special
