Polarization-Insensitive Optical Circulator (3 port)

Name: Polarization-Insensitive Optical Circulator (3 port)
Brand: china-manufacturer-directory.com
SKU: 695759055
Availability: InStock
Rating: 4.9 (140 reviews)

Supplier:	Flyin Optronics Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	3 port optical circulator
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO9001: 2008
Package:	Blister
Support Network:	Communication Cable
Usage:	Telecommunication
Type:	Passive Components

Product Description

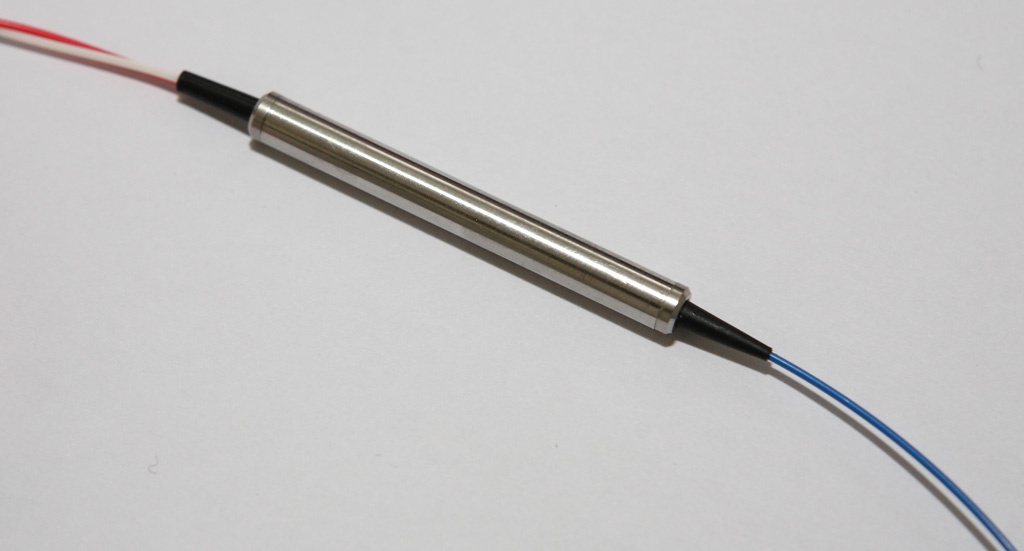

Polarization-Insensitive Optical Circulator (3 port)

Flyin supply optical Circulator with low Insertion loss loss and Low PDL.

Features
1. Low insertion Loss
2. Wide Band High isolation
3. Low PDL
4. Compact In-Line Package
5. High Stability and Reliability
6. Epoxy Free Optical Path

Applications
1. Bi-Direcation Communication
2. Dispersion Compensation
3. Wavelength Add / Drop
4. Metro Area Network
5. Optical Amplifier

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1310± 30 or 1550± 30 or 1585± 30
lnsertion Loss (dB)	Typical	0.6
	Maximum	0.8
Typical lsolation (dB)		≥ 50
Minimum lsolation(dB)		≥ 40
Cross Talk (dB)		≥ 50
Polarization Dependent Loss (dB)		≤ 0.15
Polarization Mode Dispersion (ps)		≤ 0.1
Return Loss (dB)		≥ 50
Power Handling (mW)		500
Operating Temperature (° C)		-10 ~+75
Dimensions (mm)		5.5 x L50 or 5.5 x L63

Above specification are for device without connector

Ordering Information

PIOC
	Port	Wavelength	Grade	Pigtail Style	Fiber Length	In/Out Connector
	3=3 Port	13=1310nm 15=1550nm 16=1585nm	P=P Grade	1= Bare Fiber 2=900um Loose tube	1=1m 2=2m	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
