Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shell Material: |
Aluminum |
| Protection Level: |
IP20 |
| Working Temperature: |
-40~+85° C |
| Relative Humidity: |
<95% |
| Transmission Rate: |
1m |
| Insert Loss (dB): |
<0.5 |
| Impedance(Omega): |
5.1 |
| Weight (Kg): |
0.2 |
| Connector Type: |
Dbn |
| Type: |
Surge Protective Device |
Product Description

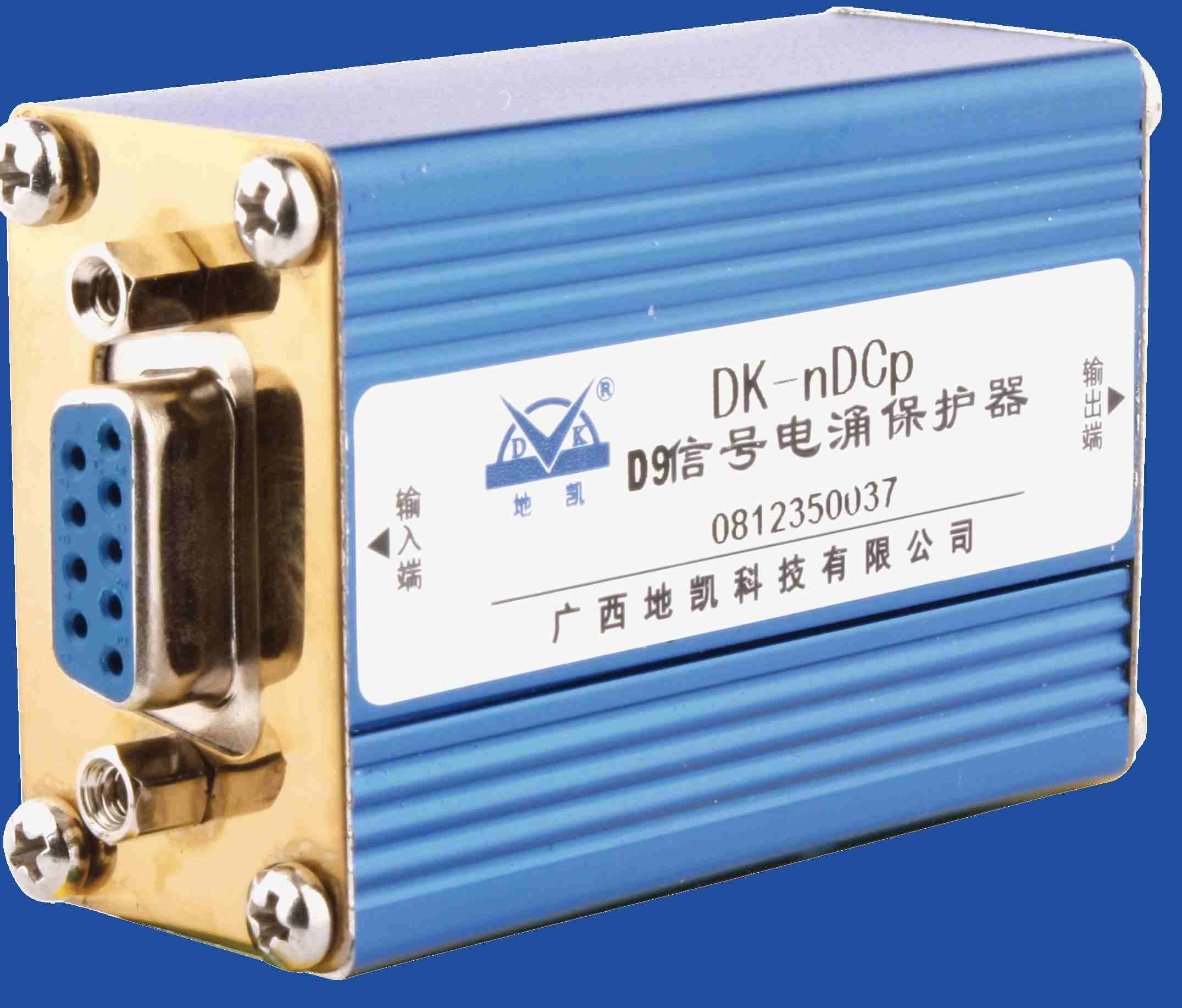

DB Connector Serials Network Signal SPD is designed according to the IEC standard
This product is suitable for lightning protection of equipments with RS232, RS485/422 connector
It's mode of connector is D type (Serial Interface): 9 cores, 15cores, 25cores, 37cores serials available, easy installation.
8/20us Maximum Discharging Currents Imax can be 10kA/Line, quick respond, and low limiting Voltage.
|
Item |
DK-nDCp |
|
Type |
D9 |
D15 |
D25 |
D37 |
|
Shell Material |
Aluminum |
|
Protection Level |
IP20 |
|
Working Temperature |
-40~+85° c |
|
Relative Humidity |
< 95% |
|
Nominal Discharging Currents In(8/20us)(kA) |
5 |
|
Maximum Discharging Currents Imax(8/20us)(kA) |
10 |
|
Limiting Voltage (10/700us)(V) |
≤ 40 |
|
Transmission Rate |
1M |
|
Insert Loss (dB) |
≤ 0.5 |
|
Impedance(Omega) |
5.1 |
|
Connector Type |
DB9 |
DB15 |
DB25 |
DB37 |
|
Dimension(mm) |
68X41X25 |
68X41X25 |
80X56X25 |
102X71X69 |
|
Weight (kg) |
0.2 |
0.21 |
0.45 |
0.32 |
