Product Specifications
| Prod Model: |
DK-DSM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RJ45 Ports Quantity: |
16 Sockets |
| Sheel Material: |
Aluminum |
| Sheel Protection Level: |
IP20 |
| Protection Mode: |
L-PE, N-PE |
| Production Standard: |
Iec61643 |
| Nominal Discharging Current In(8/20us): |
10ka |
| Max. Discharging Current Imax(8/20us): |
20ka |
| Voltage Protection Level(8/20us) Up: |
<1.1kv |
| Respond Time(L/N-PE): |
<25ns |
| Transmission Rate: |
100m |
| Type: |
Signal Type Arrester |
| Structure: |
Extension |
Product Description

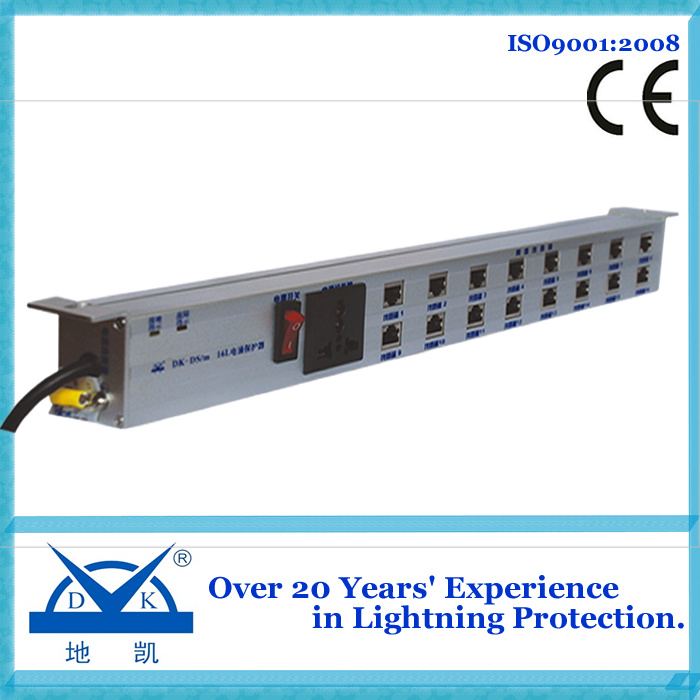

RJ45 network surge protector
1. 21 years' experiences with 10, 000 cases
2. CE certified
3. 16 ports and AC power protection
About us:
Guangxi Dikai Lightning Protection Engineering Co., Ltd (short for DK Company) was established in June 1989. It has been specialized in producing lightning protective products, researching development of lightning protective technology, consulting lightning protection service, and engineering lightning protection cases for over 20 years.
Products of the company have won more than 10 national patents and possess ISO 9001: 2008 certificatve, CE certificate and RoHS approval
|
Type |
DK-DSM |
|
Sheel Material |
Aluminum |
|
Sheel Protection Level |
IP20 |
|
Working Temperature |
-40' C~+85' C |
|
Relative Humidity |
< 95% |
|
Weight(kg) |
1.34 |
|
Power Part |
|
|
Damage Status |
Presenting break status |
|
Protection Mode |
L-PE, N-PE |
|
Protection Standard |
IEC61643-1 and GB 18802.1-2002 |
|
Lightning Protection Level |
D grade |
|
SPD Type |
Two ports |
|
Suitable Power Supply |
TT, TN, IT |
|
Rated Working Voltage |
220 V AC |
|
Rated working currents |
10A |
|
Maximum continous working voltage |
385V AC |
|
Active Voltage |
620V DC |
|
Rated working frequency |
50Hz(60Hz) |
|
Leakage currents |
< 30uA |
|
Nominal discharging currents(8/20us) |
10kA |
|
Maximum discharging currents(8/20us) |
20kA |
|
Voltage protection level(8/20us) Up |
< 1.1kV |
|
Respond time |
< 25ns |
|
Network signal part |
|
|
Limiting voltage |
< 30V |
|
Transmission Rate |
100M |
|
Insert Loss |
< 0.5dB |
|
Impendance |
0.5 Omega |
|
Connector type |
RJ45 |
Guangxi Dikai Sci & Tech Co., Ltd. Was established in June 1989, which specializes in the development and production of lightning protective products, and the research and service of lightning protective technology. It has been a top lightning protection company in China after more than 20 years of development. The company now has a top-ranking lightning protection test center, a lightning proving ground, an intellectualized building for scientific research. The products of the company have won more than 10 national patents and possess ISO 9001: 2000 certificate and CE certificate.
