Product Specifications
| Prod Model: |
JQX-62F 1Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications

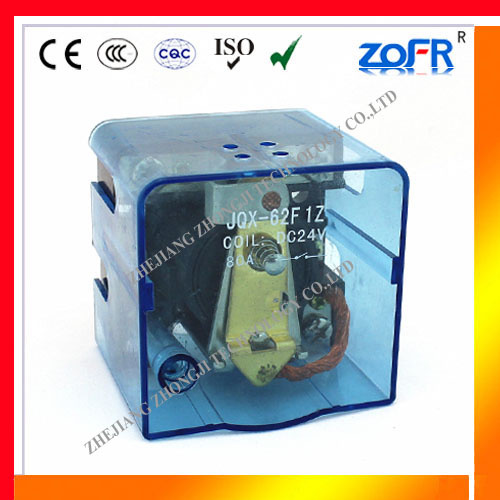

JQX-62F/1Z power relay, power switch relay
Coil voltage: 5~220VAC
Material: Silver alloy, copper
Accept OEM services
ISO, CQC, CE
JQX-62F/1Z power relay, power switch relay
Features:
Power relay
1) Outline dimensions: 69.0*68.2*62
2) Contact data:
A) Contact arrangement: 1Z(1D 1H)
B) Material: Silver alloy
3 Max. Switching current: 120A
4)Max. Switching voltage: 30V DC / 250V AC
5) Coil data:
A) Nominal voltage: 6 - 220V DC / 6 - 380V AC
B) Pick-up voltage: AC≤ 90%, DC≤ 75%
C)Drop-out voltage: AC≥ 30% DC≥ 10%
D) Coil power: 2.0W / 10VA
6) Specifications data:
A) Contact resistance: ≤ 50mΩ
B) Insulation resistance: ≥ 500MΩ
C) Dielectric strength Vr. M. S:
I) Between open contacts: ≥ 1, 500VAC
II) Between coil and contacts: ≥ 2, 000VAC
III) Between contacts form:
D) Ambient temperature: -45 - +70oC
E) /Operation/release time: ≤ 20/20ms
Zhejiang Zhongji Technology Co., Ltd was established in 1991, with advanced technology, our company is equipped with high standard production lines and a stable technical staff, management team for production and examination.
We have more than 100 series and 1, 000 different kinds of relay specifications, and mainly manufacturer all types of electromagnetic relay, PCB relay, auto relay, high power relay, time relay, counting relay, microcomputer control switch, floatless relay, electromotor protection relay, power-saving control switch, solid state relay, static-stated electric relay, gas relay, the relay bases and so on.
The products of our company have been approved by CE, ISO9001, and the China Compulsory Certification (CCC).All of the products have been listed in quality control system in the China Product Quality Association ( CPQA) "21315".We have established many sales branch offices in the domestic market, and the products are well sold and highly praised in more than 30 provinces, cities and municipalities, and as far away in Europe, America, Southeast Asia, Middle East and Africa, etc.
Zhejiang Zhongji Technology Co., Ltd.With advanced technology, superior quality, reasonable price, good reputation, warm and thoughtful service, provides products to customers' satisfaction.We are willing to sincerely cooperation, create brilliance!
