Hot Electronics Universal Testing Machine

Name: Hot Electronics Universal Testing Machine
Brand: China-Manufacturer-Directory.com
SKU: 694627452
Availability: InStock
Rating: 5 (81 reviews)

Supplier:	Jinan Chenda Testing Machine Manufacturing Co., Ltd.
Price:	US $ 1000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WDW-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range Of Test Force:	2%-100%
Test:	Tensile Compression Bending and Shear
Motor:	Servo Motor
Software:	Maxtest Software with English Version
Operation:	with Standard PC
Structure:	Door Type
Adjust Speed Range:	0.01-500mm/Min
Type:	Tensile Testing Machine
Weight:	1000-2000Kg
Power Source:	AC220V
Display:	Computer Display
Maxcapacity:	100kn

Product Description

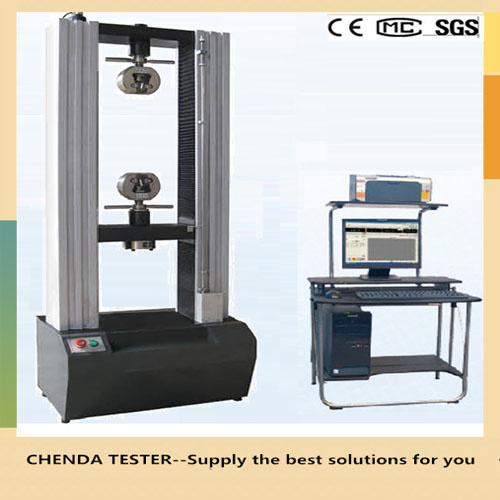

WDW-100 Computer Control Electronic Universal Testing Machine

Main Function:

These series are suitable for tensile, compression, bending testof rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, metal and non-metal materials etc. They may add test methods or rules according to customers' requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

Standard accessories:

Feature:

1> Complete computer controlled: the whole measuring and controlling system adopts specific PC control card used for testing machines. realizing the data zero and plus adjustment, which has very high reliability.

2>Supporting multi-transducers. Realizing the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer.

3>Perfect programming by auto program control, every control mode can smoothly shift to another one.

4>Fulfilling the test requirement of all kinds of materials with every test standard home and abroad.

5>Control software has the the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness.

6>Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result.

7>The user can self-define the output of the test report, which makes the report format have high flexibility.

8>Modularization design facilitated the software upgrading, function spreading as well as the second development.

Standard delivery

1> Test host 1

2> AC servo motor 1

3> Speed governor 1

4> Load cell 1

5> Precision ball screw 2

6> Deceleration system 1

7> Digital control system 1

8> Optical encoder 1

9> Computer 1

10> Printer 1

11> Windows system software 1

12> Accompany tools 1

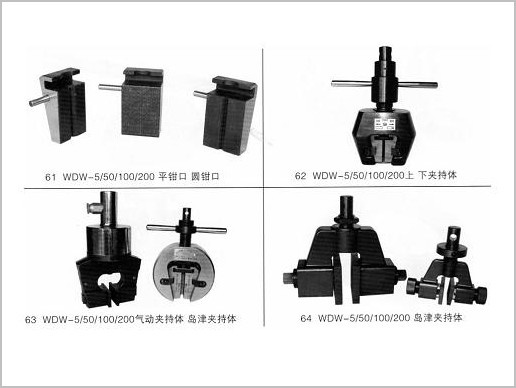

13> Tensile accessory 1

14> Compression accessory 1

15> Bending accessory 1

16> Technical information 1

Working shop:

Max. load force	100KN
Measurement of range of test force	2%-100%
Testing machine test grade	1
Crosshead displacement resolution	0.01mm
Adjust speed range	0.1-500mm/min
Host type	Door-structure
Host dimension	740×600×1850
Weight	500KG
Working environment	room temperature 45°C humidity 20%-80%
Accuracy of test force	≤±1%
