Product Specifications
Product Description

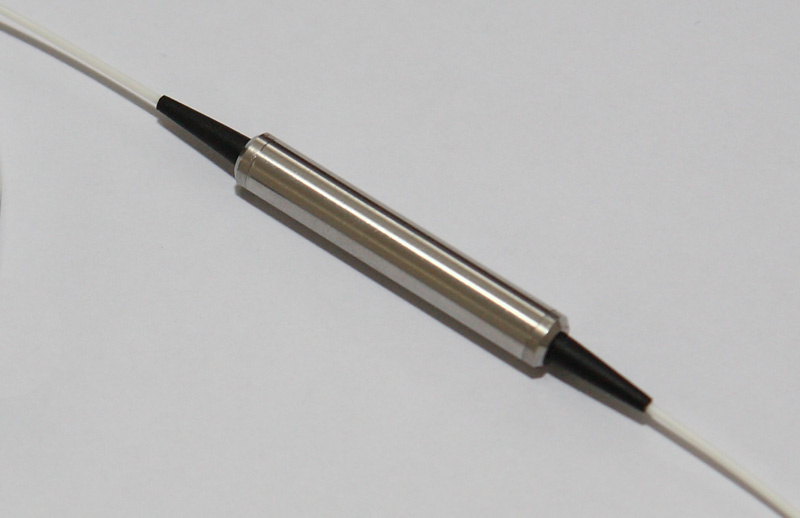

Flyin Optronics offers a complete line of fiber pigtailed isolators for wavelengths of 1310, 1480 or 1550nm. These isolators combine a free space Faraday rotator with Polarizing optics to provide up to 55 dB of isolation and high power handling with Minimum losses.
Isolators are offered in two different versions, polarization dependent and Polarization independent. Both block any returning light regardless of the input Polarization. However the insertion losses of polarization dependent solators Depend on the input polarization, while for polarization independent isolators the Insertion losses are constant.
|
Parameter |
P Grade |
A Grade |
|
Operating Wavelength (nm) |
1310 or 1550 |
|
Typical Isolation (dB) |
40 |
40 |
|
Minimum Isolation (dB) |
30 |
28 |
|
Typical Insertion Loss (dB) |
0.35 |
0.45 |
|
Maximum Insertion Loss (dB) |
0.5 |
0.7 |
|
Return Loss (In/Out) (dB) |
≥ 65/60 |
≥ 55/55 |
|
PDL (dB) |
≤ 0.05 |
≤ 0.1 |
|
PMD (dB) |
0.2 |
|
Bandwidth (nm) |
-15 to +15 |
|
Operating Temperature (º C) |
-5 to +75 |
|
Storage Temperature (º C) |
-40 to +85 |
|
Fiber Type |
Corning SMF-28 |
|
Fiber Length (Min. ) |
1 meter each end |
|
Package Dimension (mm) |
Φ 5.5 x L30 |
|
Power Handling (mW) |
500 |
(Standard) Dual Stage
|
Parameter |
P Grade |
A Grade |
|
Operating Wavelength (nm) |
1310 or 1550 |
|
Typical Isolation (dB) |
56 |
50 |
|
Minimum Isolation (dB) |
45 |
42 |
|
Typical Insertion Loss (dB) |
0.5 |
0.5 |
|
Maximum Insertion Loss (dB) |
0.7 |
0.8 |
|
Return Loss (In/Out) (dB) |
≥ 65/60 |
≥ 55/55 |
|
PDL (dB) |
≤ 0.05 |
≤ 0.1 |
|
PMD (dB) |
0.05 |
|
Bandwidth (nm) |
-30 to +30 |
|
Operating Temperature (º C) |
-5 to +75 |
|
Storage Temperature (º C) |
-40 to +85 |
|
Fiber Type |
Corning SMF-28 |
|
Fiber Length (Min. ) |
1 meter each end |
|
Package Dimension (mm) |
Φ 5.5 x L30 |
|
Power Handling (mW) |
300 |
At 23 º C over bandwidth Not include connector, splice and fiber-end Fresnel losses. Including PDL, operating wavelength range, -5 to +75 º C.
Ordering Information
|
XX |
XX |
X |
X |
X |
X |
XX |
|
Isolator Type |
Wavelength |
Grade |
Pigtail Style |
Fiber Length |
Package |
In/Out Connector |
IS=Single stage
ID=Dual stage |
13=1310nm
4=1480nm
5=1550nm
LB=L Band |
S=Super
P=Premium
A=Grade A |
1=Bare Fiber
2=900um jacket |
1=1.0m
2=1.5m
3=2.0m
4=Custom length |
B=B type |
0=none
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC |
