Price: | Negotiable/Piece |
---|---|
Trade Terms: | EXW |
Min Order: | 20/Piece |
Pay Type: | T/T,Paypal,Western Union |

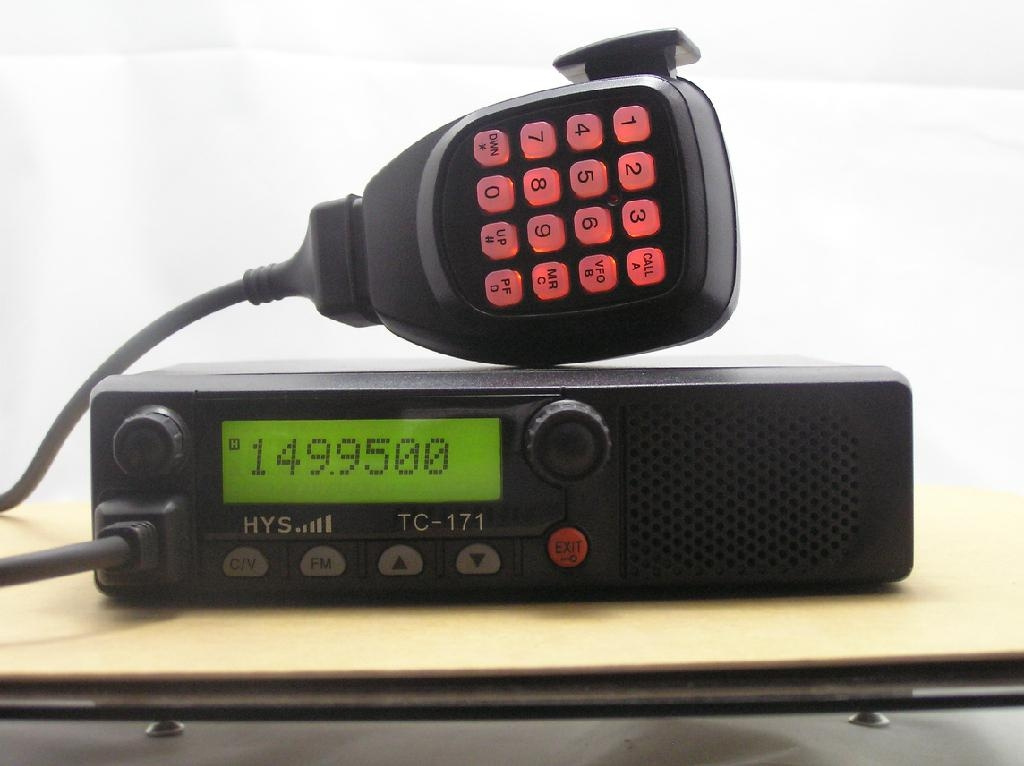

Prod Model: | TC-171 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Memory Channels: | 128 Channels |
Frequency Range: | VHF:136-173MHz UHF:400-470MHz ,440-480MHz |
Operating Voltage: | 13.8V DC Cathode Grounded |
Operate Mode: | Co-Channels or Dis-Channel Simplex |
Ctcss/DSC: | Ctcss:50 Dcs:105 |
Frequency Stability: | ±2.5ppm |
Weight: | 1200g |
Dimension: | 160*43*137mm |
Output Power: | 50W/20W(VHF) 40W/20W(UHF) |
FM Receive Frequency: | 87-108MHz |
Wavelength And Frequency: | Long-wave |
Application: | Industrial |
Style: | Sky Wave |
Condition: | New |
Standard: | Standard |
Screen: | With Screen |
General Specification | |||
Frequency Range | VHF:136-173MHZ UHF:400-470MHZ ,440-480MHZ | Operating Voltage | 13.8V DC cathode grounded |
Operate Mode | Co-channels or dis-channel simplex | CTCSS/DSC | CTCSS:50 DCS:105 |
Memory Channels | 128 Channels | Frequency Stability | ±2.5PPM |
Antenna Impedance | 50Ω | Operating Temperature | -30ºC to +60ºC |
Weight(approx.) | 1200g(Except antenna ) | Dimension(approx.)(Except antenna ) | 160*43*137mm |
Transmitter(Testing under TIA/EIA-603 standard) | |||
Output Power | 50W/20W(VHF) 40W/20W(UHF) | Modulation Mode | 16K¢F3E/11K¢F3E |
Audio Response | +1/-3dB | Frequency Stability | ±2.5ppm |
Spurious Radiation | < 60dB | Modulation Distortion | ≤5% |
Channel Spacing | ≤25KHz (width)/12.5KHz(narrow) | Adjacent channel power | ≥65dB/25KHz |
Receiver(Testing under TIA/EIA-603 standard) | |||
Sensitivity | ≤0.8uV | Squelch Sensitivity | ≤0.2uV |
Adjacent channel selectivity | ≥60dB | Intermodulation Rejection | ≥60dB |
Audio output power | 500mW | Audio Distortion | ≤5% |
Co-channel restrain | ≥-0.8dB | Blocking | ≥84dB |
