Tc-171 VHF UHF Car Transceiver with 50watt Power Long Range FM Transmitter Radio

Name: Tc-171 VHF UHF Car Transceiver with 50watt Power Long Range FM Transmitter Radio
Brand: china-manufacturer-directory.com
SKU: 743871385
Availability: InStock
Rating: 4.9 (51 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	TC-171
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF:136-174MHz UHF:400-480MHz
Output Power:	VHF: 50W/20W UHF: 40W/20W
Memory Channels:	200
Channel Spacing:	25kHz (Width)/12.5kHz(Narrow)
Ctcss Dcs:	42 Gourps Ctcss,104 Gourp Dcs
Multiple Scan Functions:	Yes
Built-in Tcxo:	Yes
Busy Channel Lockout:	Yes
Dtmf Function:	Yes
PC Programming:	Yes
Standard:	Standard
Condition:	New
Screen:	With Screen
Application:	Military
Wavelength And Frequency:	Short-wave
Style:	Sky Wave

Product Description

Feature:

1.Frequency Range:VHF:136-174MHz
UHF:400-480MHz

2.Output Power: VHF: 50W/20W
UHF: 40W/20W
3.200 memory channels, plus one call channel
4.Channel Spacing: 25KHz (width)/12.5KHz(narrow)
5.42 gourps CTCSS,104 gourp DCS
6.Multiple scan functions
7.High frequency stability with built-in TCXO
8.Busy channel lockout
9.DTMF function
10.Emergency Call
11.Time-Out Timer
12.PC Programming
13.Compatible With American Military Standard(MIL-STD-810C/D/E)·

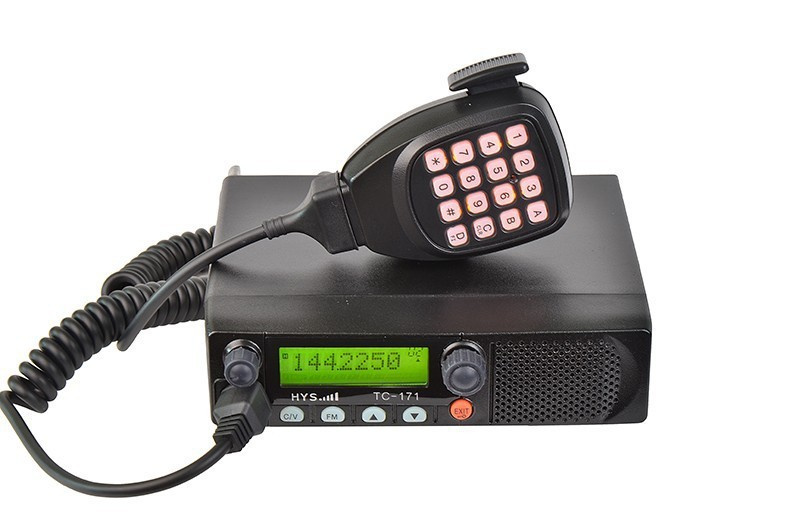

Professional mobile Radio picture:

General Specification
Frequency Range	VHF: 136-174MHZ UHF: 400-430MHZ, 440-480MHZ	Operating Voltage	13.8V DC cathode grounded
Operate Mode	Co-channels or dis-channel simplex	CTCSS/DSC	CTCSS: 42 DCS: 104
Memory Channels	200 Channels	Frequency Stability	± 2.5PPM
Antenna Impedance	50Ω	Operating Temperature	-30 to +60º C
Weight(approx. )	1200g(Except antenna )	Dimension(approx. )(Except antenna )	16043137mm
Transmitter(Testing under TIA/EIA-603 standard)
Output Power	50W/20W	Modulation Mode	16K¢ F3E/11K¢ F3E
Audio Response	+1/-3dB	Frequency Stability	± 2.5ppm
Spurious Radiation	< 60dB	Modulation Distortion	≤ 5%
Channel Spacing	≤ 25KHz (width)/12.5KHz(narrow)	Adjacent channel power	≥ 65dB/25KHz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity	≤ 0.8uV	Squelch Sensitivity	≤ 0.2uV
Adjacent channel selectivity	≥ 60dB	Intermodulation Rejection	≥ 60dB
Audio output power	500mW	Audio Distortion	≤ 5%
Co-channel restrain	≥ -0.8dB	Blocking	≥ 84dB
